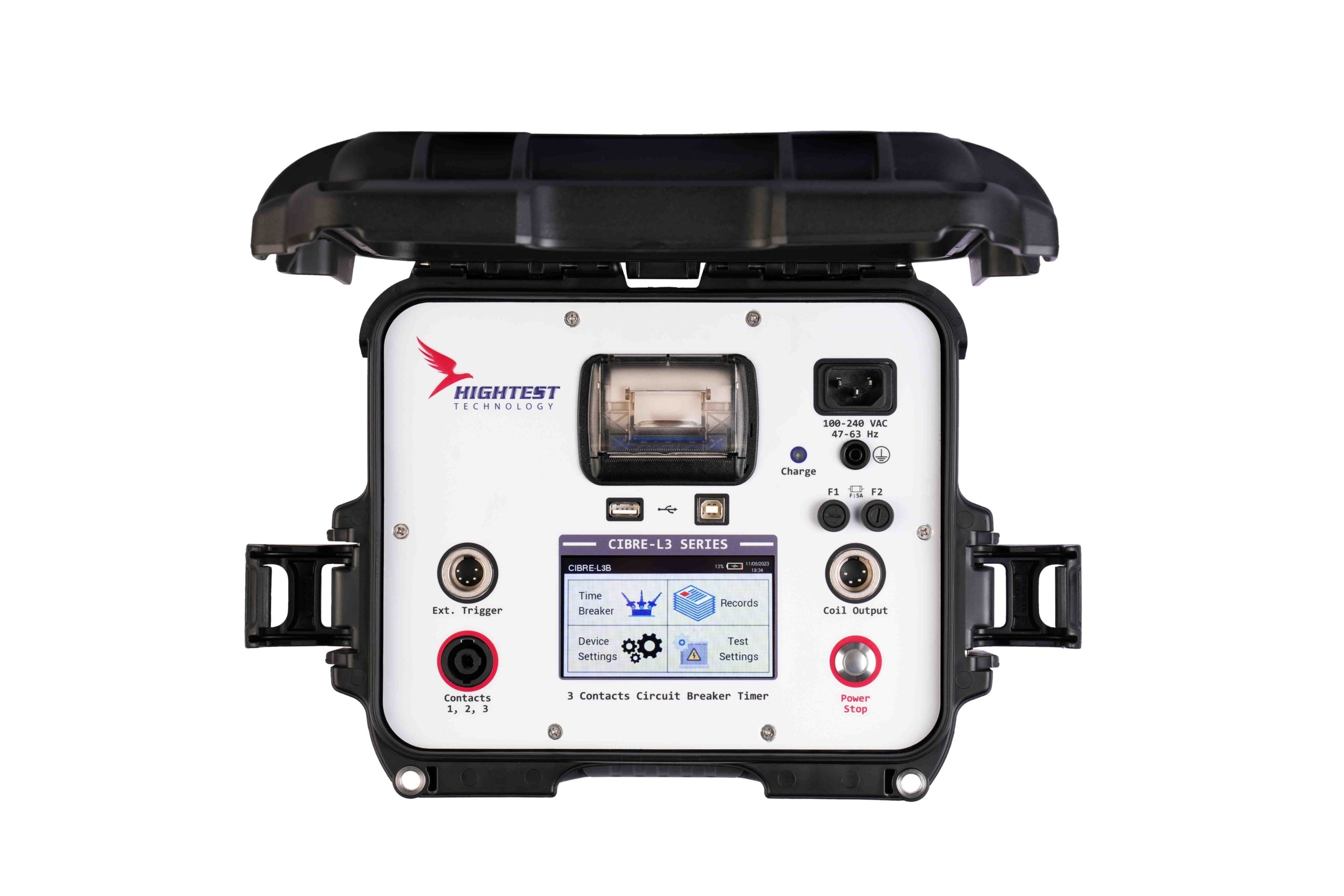

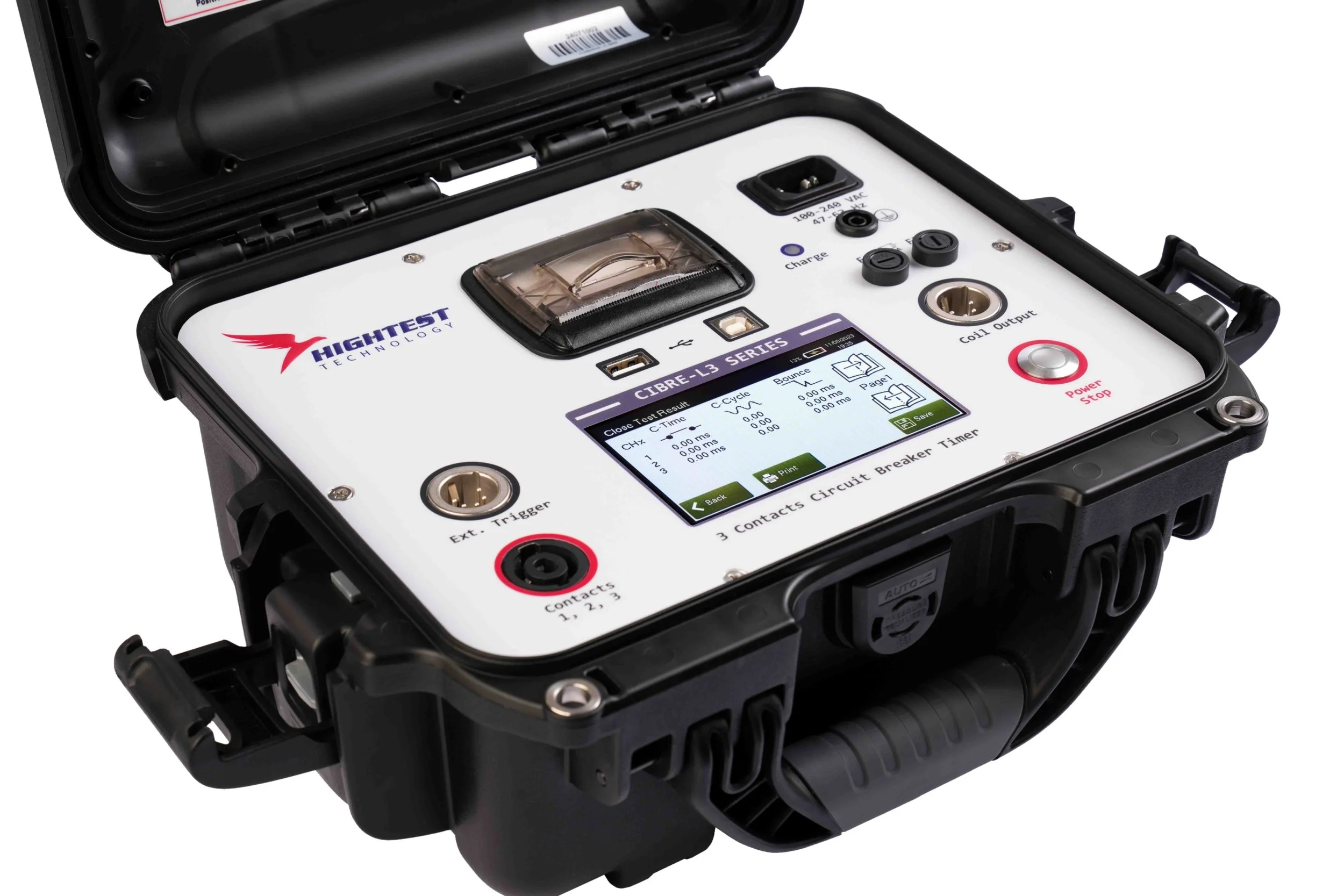

HIGHTEST CIBRE-L3
3-Contact Circuit Breaker Timer with Built-in Printer

CIBRE-L3 Series, 3-Contact Circuit Breaker Timers are designed using advanced engineering technology to test contact timings of circuit-breakers.

CIBRE-L3 Series have fast, easy and accurate measurement features through its user-friendly software and are battery-powered devices (optional feature), which allow users to perform tests even without a power supply during field tests.

Why do we need to test circuit breakers?

It is very important to test circuit breakers regularly. Contact Timing Tests are performed to determine the optimal performance of the breakers. The testing can determine improper breaker operations in case of system fault and improve system reliability.

KEY FEATURES

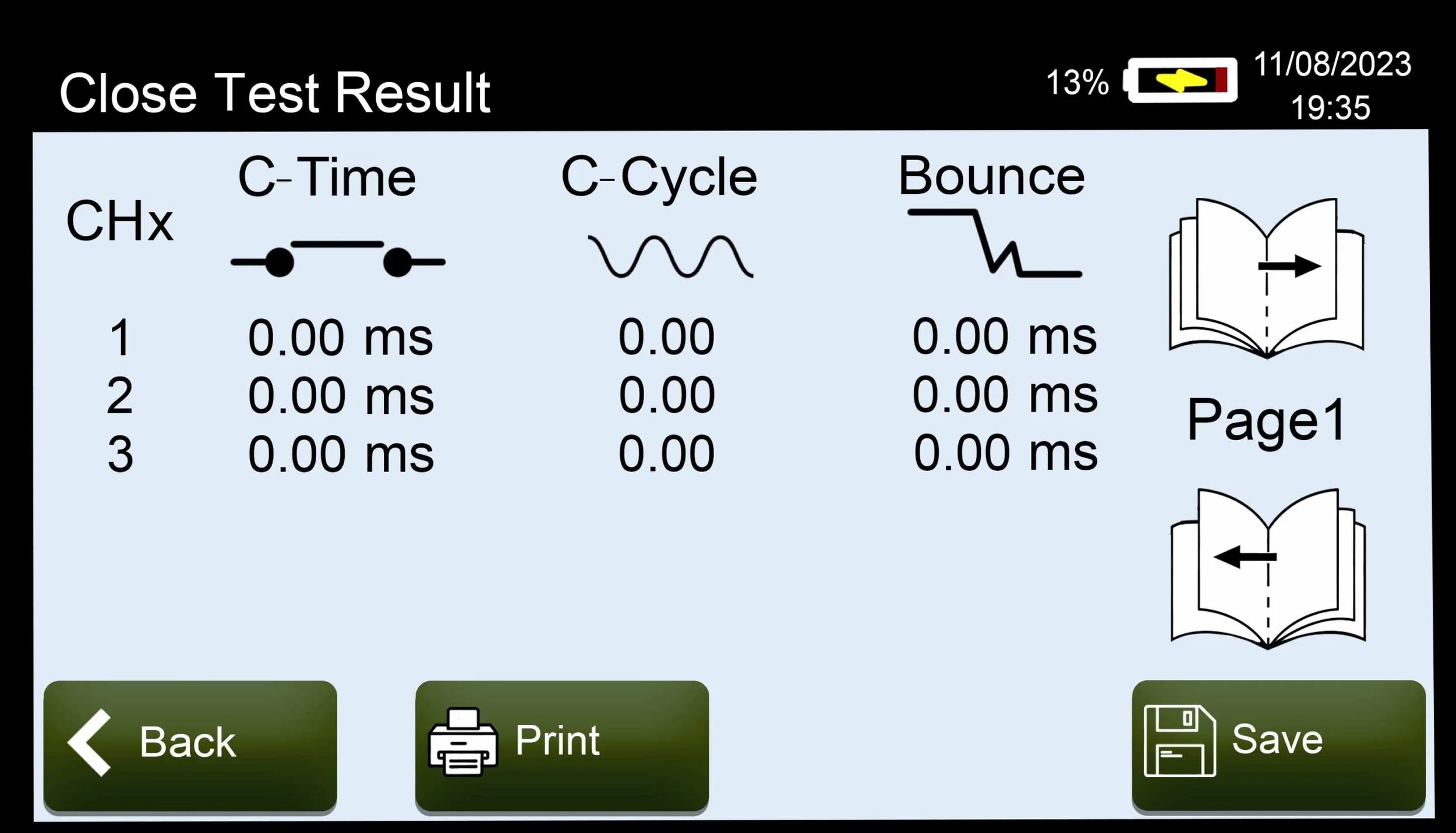

  • Contact Timing (O, C, O-C, C-O & O-C-O)

  • 3 Dry Contact Inputs

  • Timing Accuracy: 0.05% rdg ± 0.1 ms

  • Timing Windows: 1s, 10s & 20s

  • Contact Detection Range: Closed ≤20 Ω &

  • Open ≥5000 Ω

  • Optional Battery

  • Optional Bluetooth Communication

  • 2.25” Built-in Printer

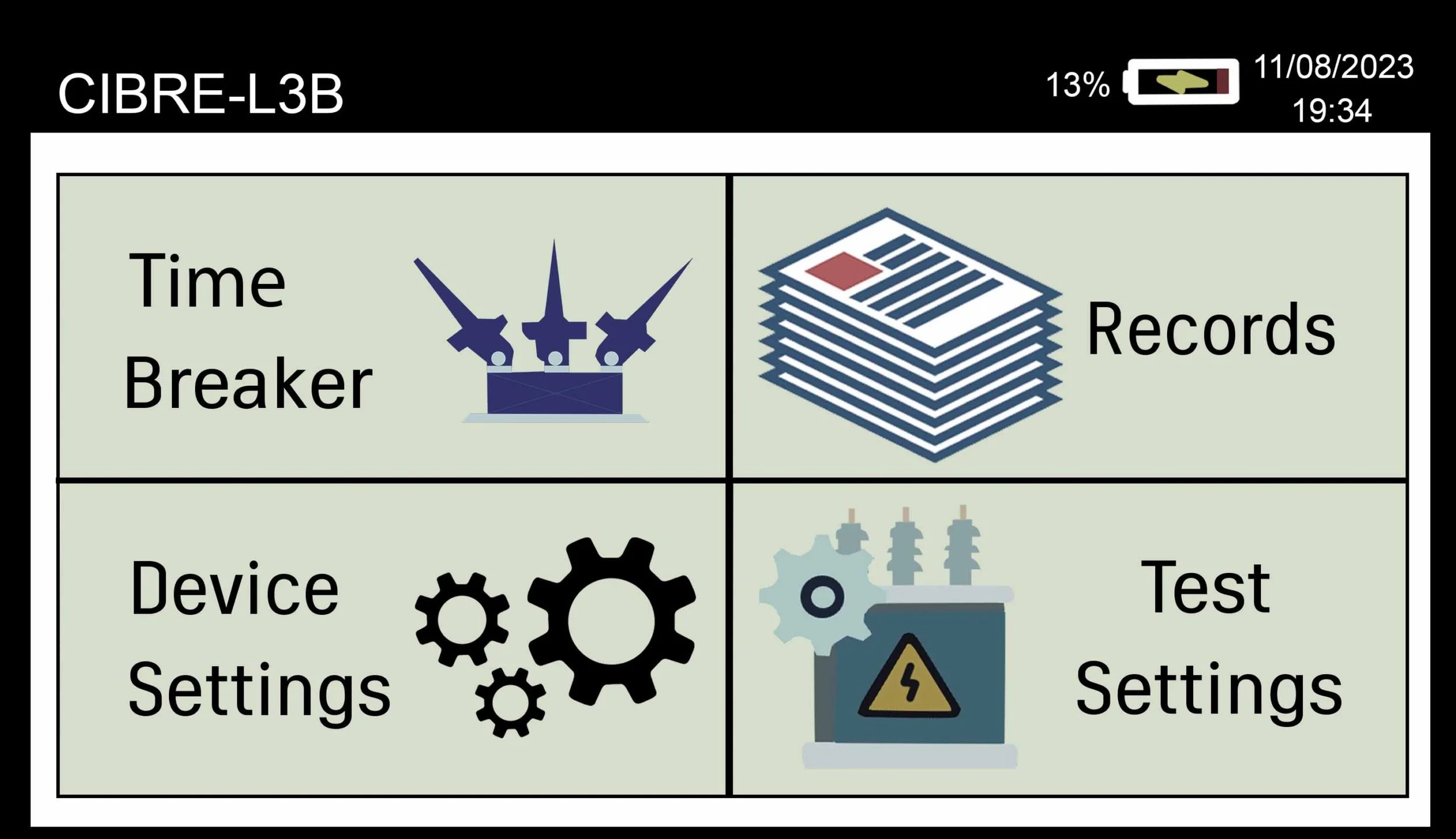

  • 4.3” TFT Touch Colour Display

  • Lightweight and Portable

  • Protection Class IP67 (case closed)

  • Weight: 7 lbs.

KIT INCLUDES

  • CIBRE-L3, 6m Contact Cable, 10m Contact Extension Cable, 1m Initiate Cable, 5m Initiate Extension Cable, 1m External Trigger Cable, 5m External Trigger Extension Cable, Power Cord, Ground Cable, USB Cable, Printer Paper (2x), USB Flash Drive, Instruction Manual (soft copy), Soft Cable Bag

OPTIONS

  • CIBRE-L3 BLUE, 3-Contact Circuit Breaker Timer with Built-in Bluetooth & Printer

  • CIBRE-L3B, 3-Contact Circuit Breaker Timer with Built-in Battery & Printer

  • CIBRE-L3B BLUE, 3-Contact Circuit Breaker Timer with Built-in Battery, Bluetooth & Printer
