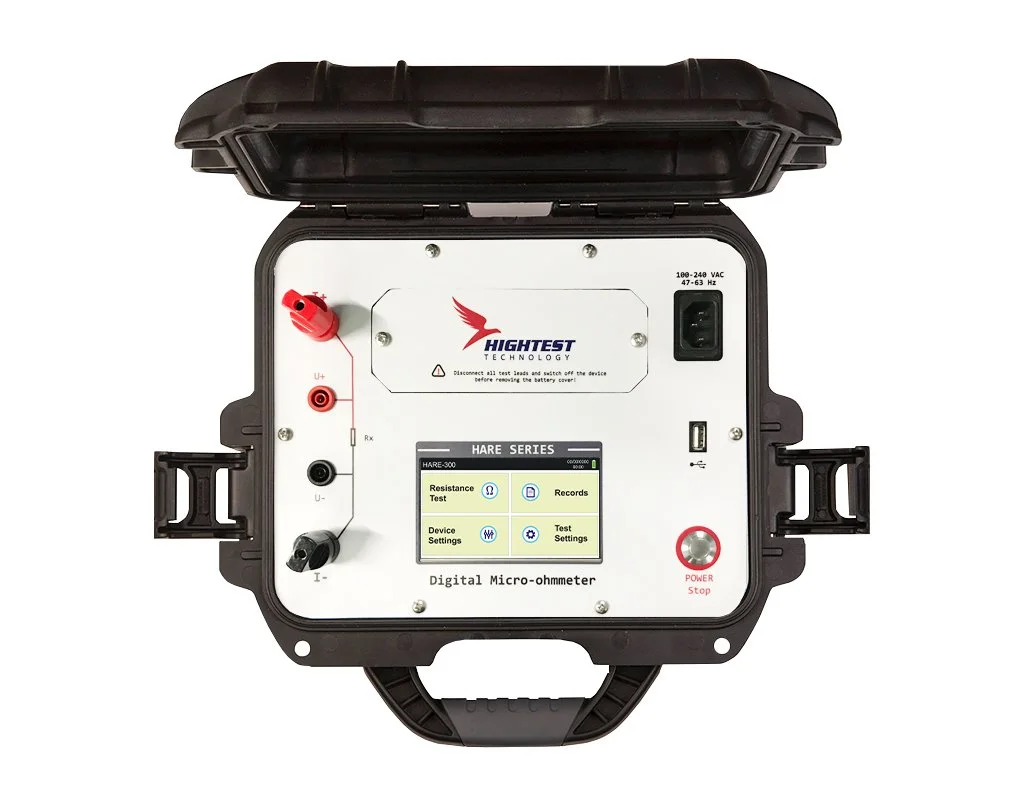

HIGHTEST HARE SERIES
Contact Resistance Tester

HARE Series is a micro-ohmmeter manufactured by using advanced engineering technologies which can apply up to 100A/ 200A/ 300A test current. With its easy-to-use software, HARE Series can easily measure contact resistance of the circuit breaker, shunt and disconnector by applying adjustable test current up to 100A/ 200A/ 300A depending on the model. HARE Series can measure from 0.1 μ Ω to 5 Ω and is capable of measuring the static resistance of the circuit breaker’s contact points. HARE Series can also measure idle circuit breakers.

KEY FEATURES

  • Portable Contact Resistance Tester

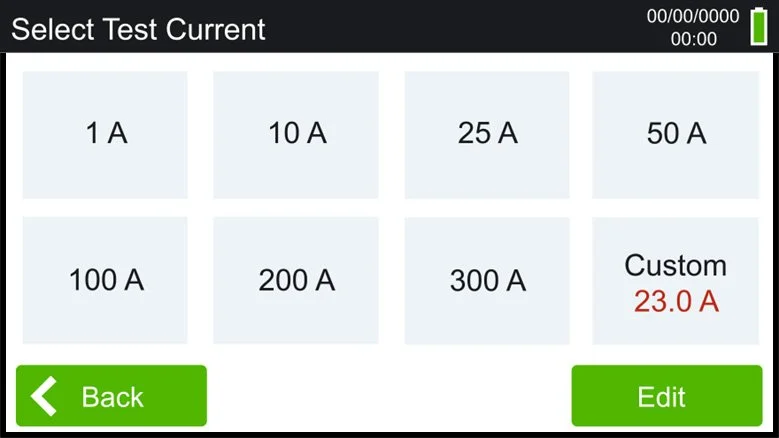

  • 0.4A to 100A Adjustable test current (HARE-100)

  • 0.4A to 200A Adjustable test current (HARE-200)

  • 0.4A to 300A Adjustable test current (HARE-300)

  • Up to 5 Ω resistance measurement

  • 0.1 μΩ resolution

  • Automatic discharge

  • High EM interference protection

  • Battery-powered

  • Ultra-fast measurement

  • Light-weight

  • 4.3” Resistive touch colour display

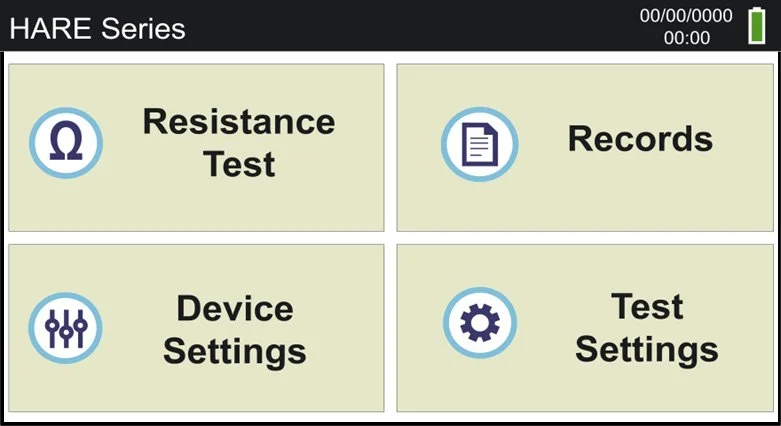

  • User-friendly operation menu

  • Internal memory

  • USB Flash Drive

  • IP67 Protection case

  • Weight: 7 lbs

KIT INCLUDES

  • HARE device, Rechargeable Battery, Power Cord, 1.5m Measurement Cable Set, USB
