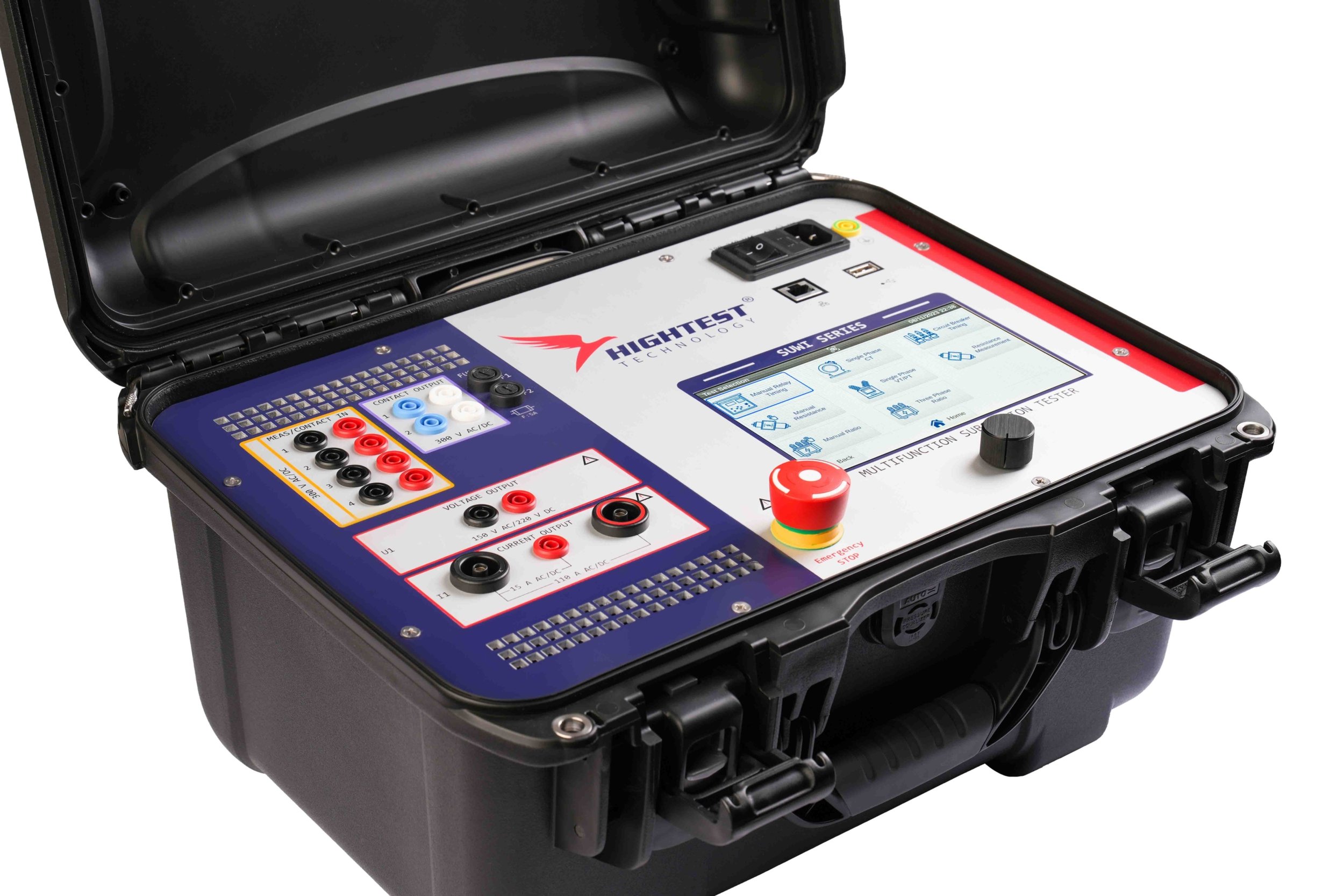

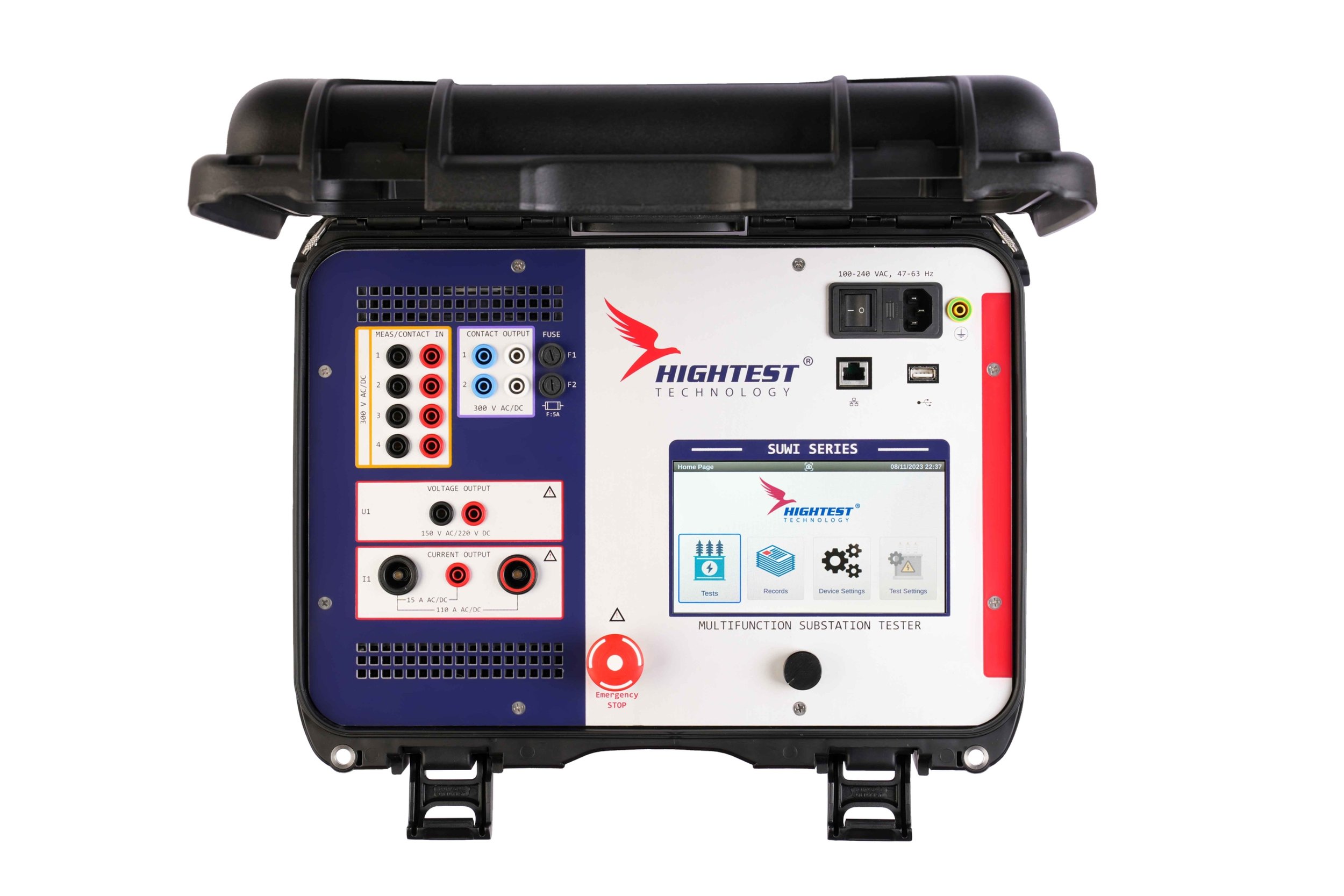

HIGHTEST SUWI-120
Multifunctional Substation Test Set

SUWI-120 series is a multifunctional test set that evaluates the performance of power and control apparatus within substations. It encompasses an array of essential tests, including the precise assessment of Relay Timing, the determination of a Transformer’s Turns Ratio, the scrutiny of Circuit Breaker Contact Resistance and Timing, as well as the examination of MCBs, among other critical functions.

This all-encompassing substation testing device is our complete substation wizard that measures:

  • Relay Timing

  • Transformer Turns Ratio

  • Contact Resistance

  • Low Resistance

KEY FEATURES

  • Contact Resistance Measurement

  • Relay Timing Tests

  • Turns Ratio Measurement

  • Contact Resistance Tests

  • Low Resistance Tests

    Circuit Breaker Timing Tests

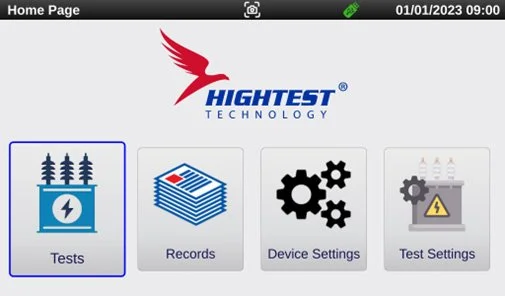

  • 4.3-inch TFT Touch Display

  • Weight: 24 lbs.

KIT INCLUDES

  • (4x) 5m Input Cable Set (Red & Black), (1x) 5m V OUT Cable Set (Red & Black), (2x) 3m Contact Cable Set (Blue & White), (1x) 2.5m IN/OUT Cable Set (Black & Red), Power Cable, Ground Cable, Ethernet Cable, USB flash drive, Instruction Manual (Soft Copy), DMP Software, Cable Bag
