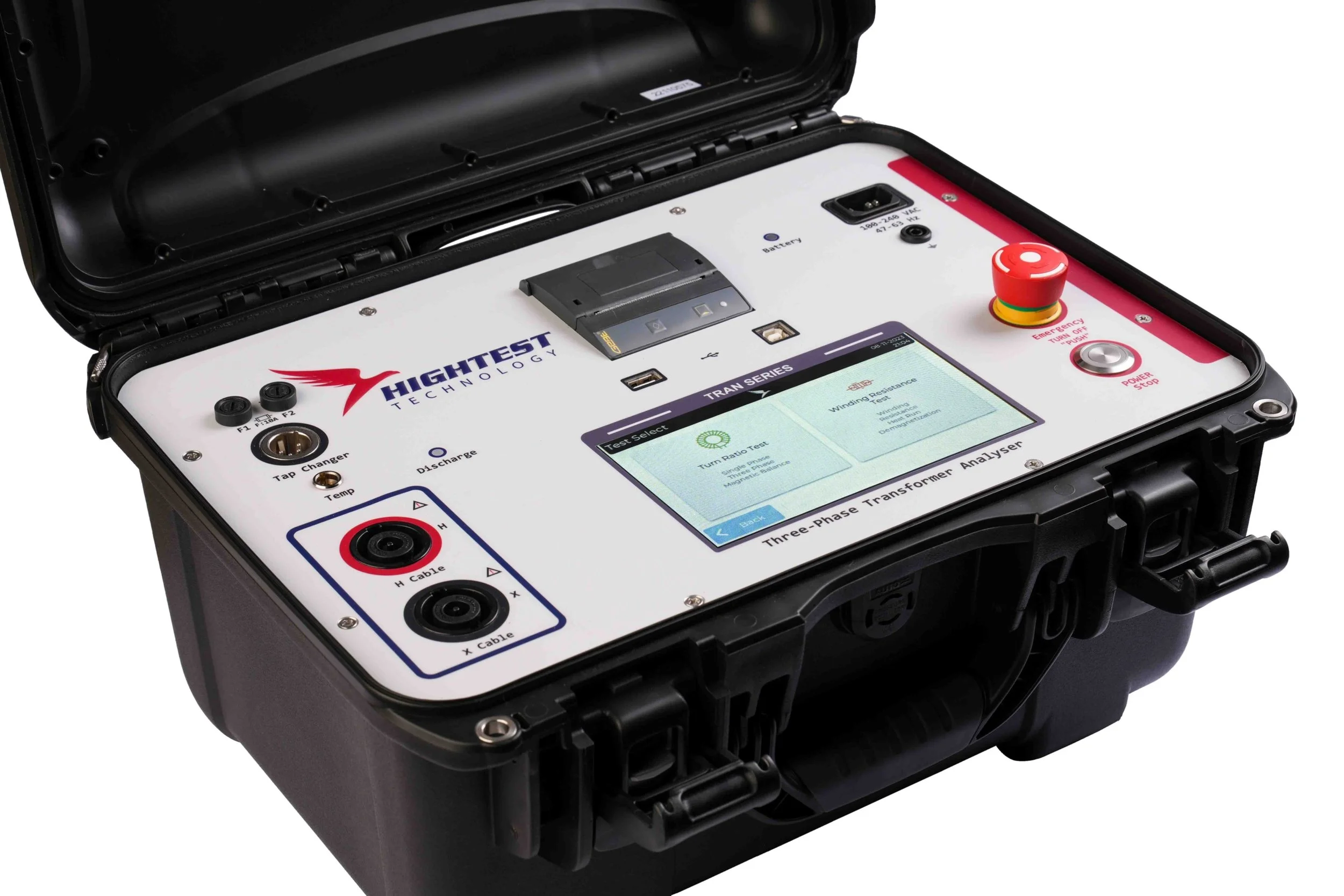

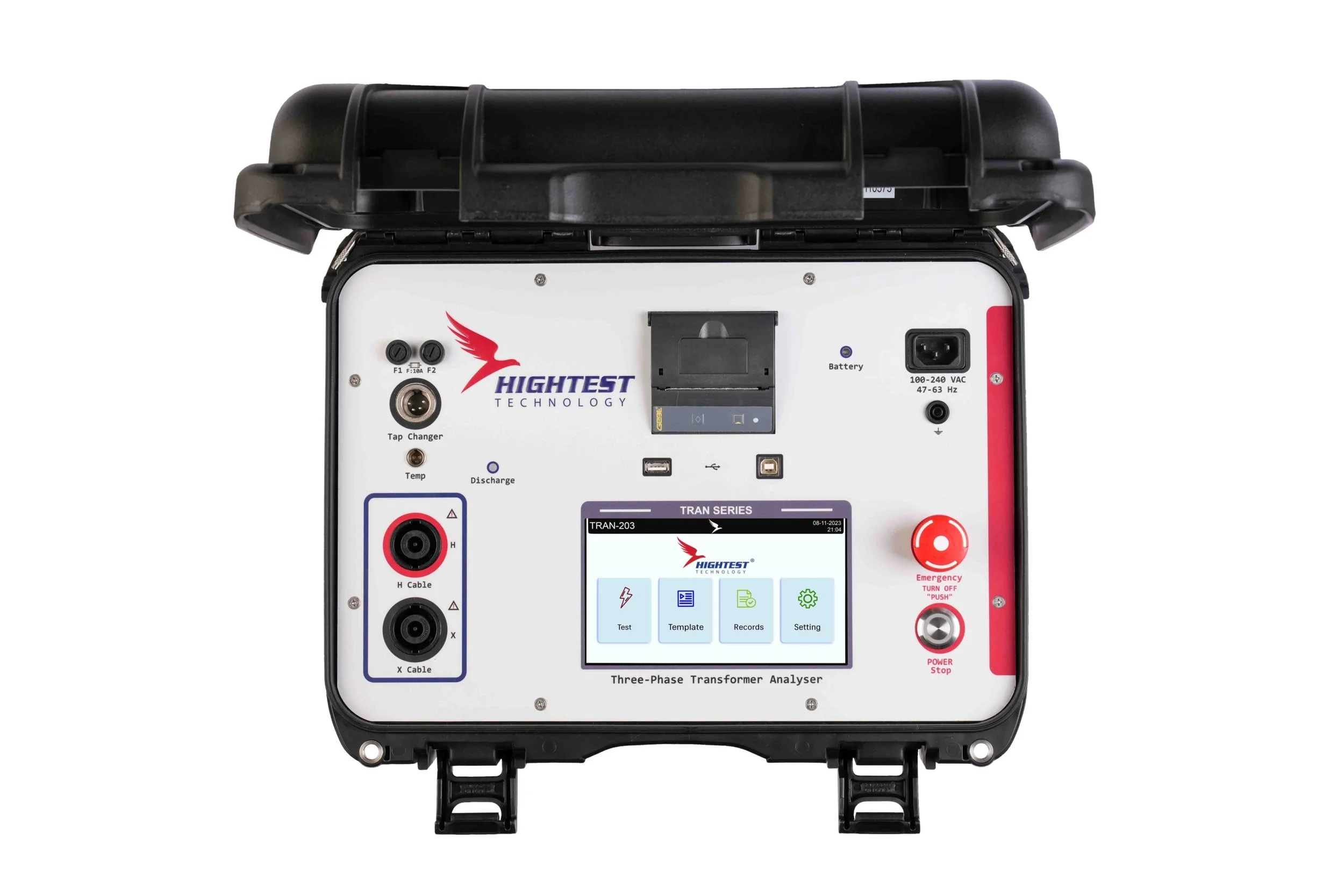

HIGHTEST TRAN-203
20A 250V Three-Phase Transformer Analyzer
The TRAN-203 series of instruments are designed to measure the turns ratio and winding resistance of three-phase and single-phase transformers. Via its user-friendly interface, the TRAN instruments provides a fast and accurate assessment of key transformer parameters. This multifunctional device performs:
Transformer Turns Ratio Tests
Winding Resistance Measurement
Heat Run / Temperature Rise Tests
KEY FEATURES
Turns ratio measurement (Single-phase & Three-phase)
Winding resistance measurement (Single-phase & Three-phase)
Heat run test/Temperature rise test
Magnetic Balance Test

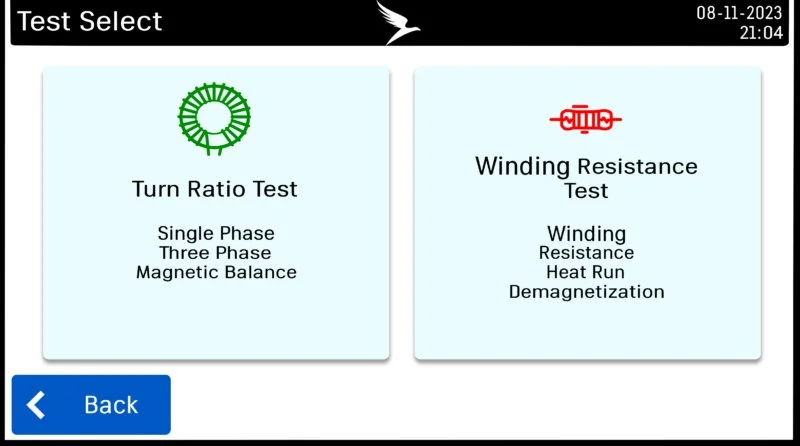

7-inch TFT Colour touch display
Built in 2.28-inch Printer
Battery & Bluetooth options
PC Software
Weight: 21 lbs
KIT INCLUDES
Power Cable, Ground Cable, (2x) 5m H&X Measurement Cable Set, (2x) 10m H&X Extension Cable Set, 5m Tap Changer Cable Set, USB Cable, Jumper Cable, Printer Paper (x2), USB flash drive, Instruction Manual (Soft Copy), DMP Software, Cable Bag
