High Voltage AC and DC Test Systems
High Voltage AC Test Systems for routine testing of electrical insulation systems and plant.

High-performance, high-voltage DC Test Systems ideal for efficient and reliable testing of cable & jointing systems.

T&R Test Equipment

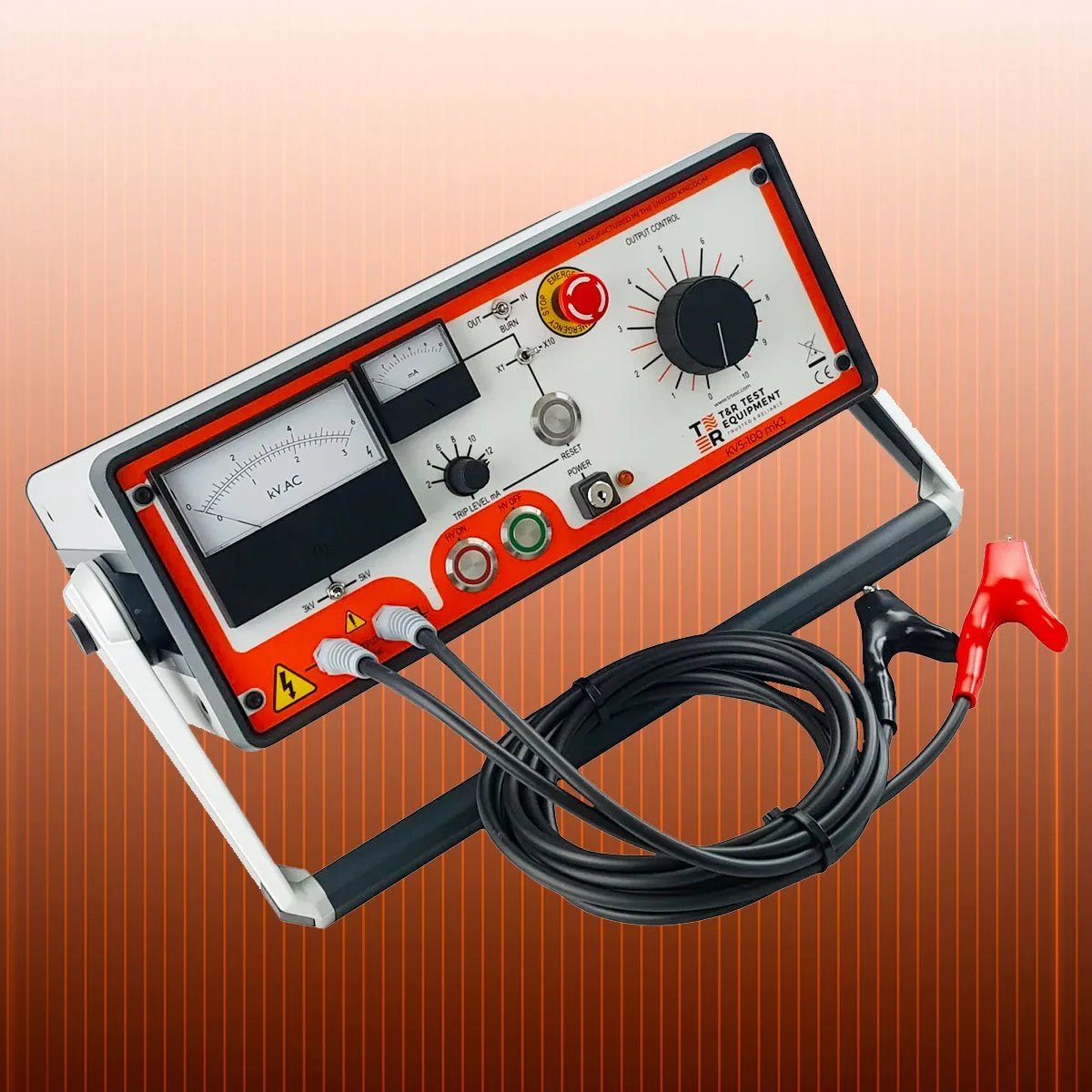

KV5-100 Mk3 High Voltage AC Test System

The KV5-100 MK3 Test Set is designed to test insulation systems and measure breakdown voltage on electrical components. It adjusts output voltage from zero to 5kV and accurately meters output voltage and current. An interlock energizes the output only when voltage control is zero.

Two analogue instruments meter output voltage and load current. Output voltage displays on a dual-scale marking of 0-3kV and 0-6kV. Load current has a 0-10 scale marking with selectable ranges: 0-10mA and 0-100mA.

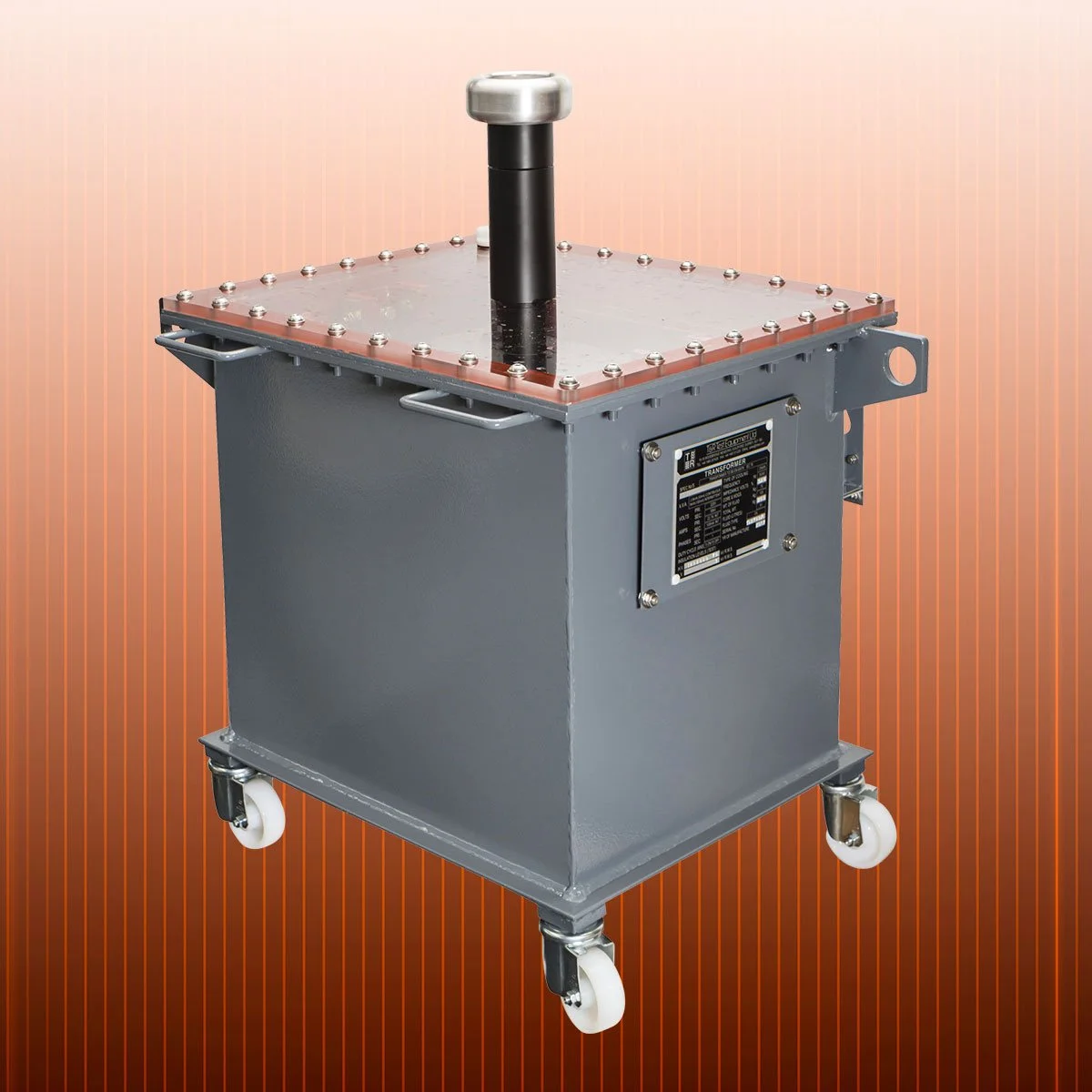

Output Transformers
For higher voltage or power needs, refer to our full line of KV models ranging from 30kV/40mA up to 100kV/100mA.

    • Continuously variable output voltage 0-5kV AC

    • Variable trip circuit

    • 12mA and 20-120mA

    • Output voltage and current metering

    • Visual and audible indication of test piece failure

    • Compact lightweight instrument

    • Burn feature giving 100mA maximum current on short circuit

    • Key operated switch preventing unauthorized operation

    • Complies with the testing requirements of BS1363


T&R Test Equipment

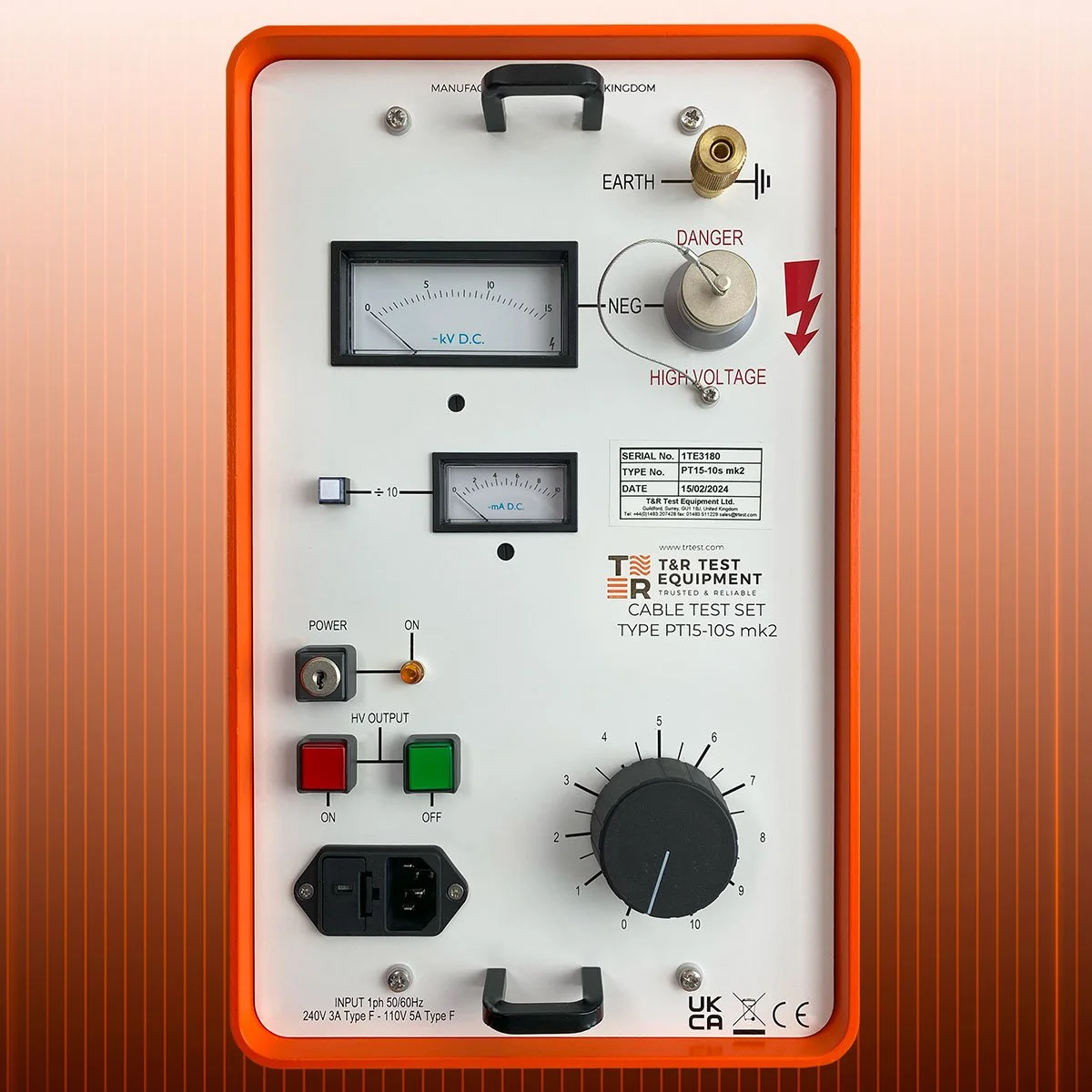

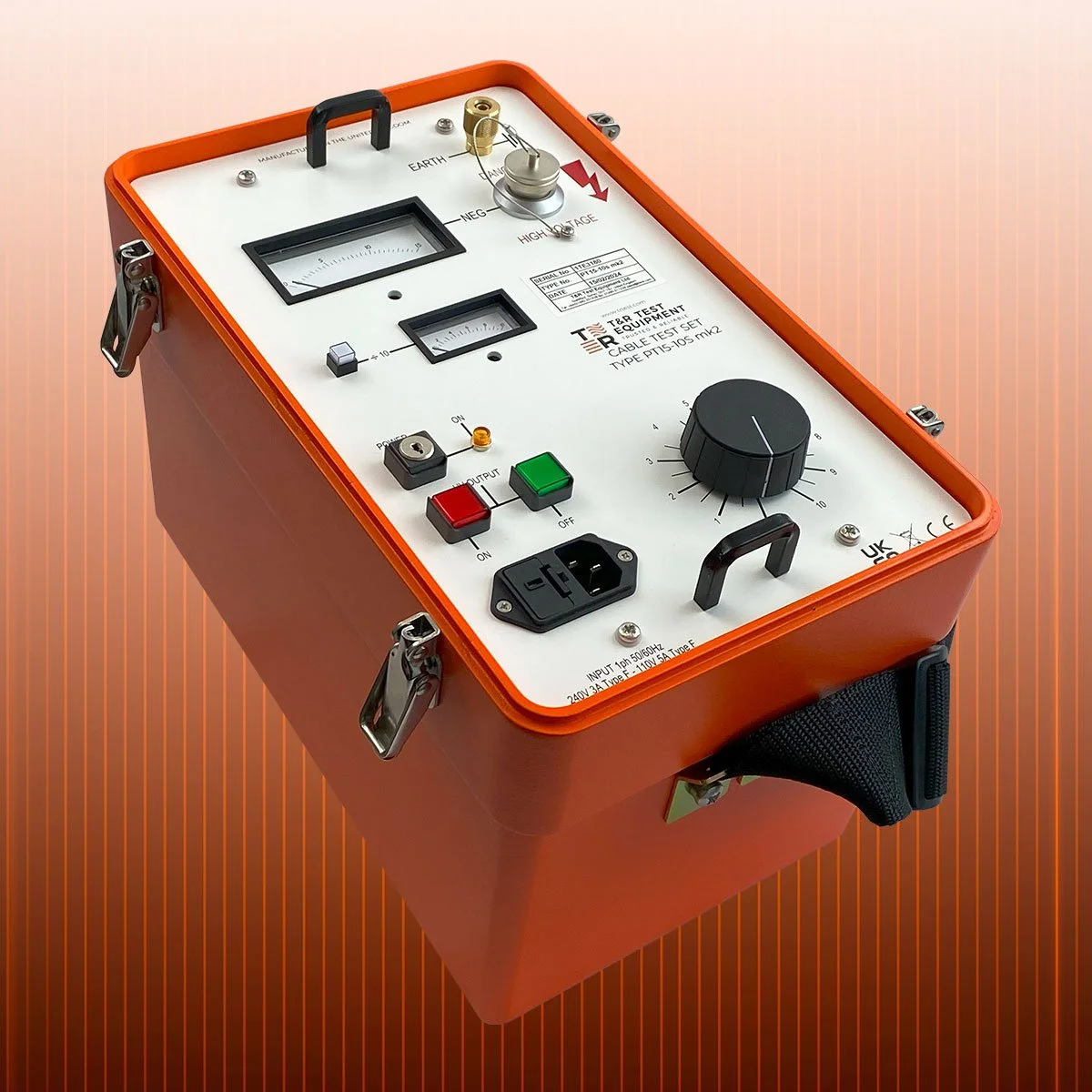

PT15-10S Mk2 High Voltage DC Test Set

The PT15-10S Mk2 Test Set provides a variable output of zero to 15kV DC with a maximum charging capability of 10mA. It includes a zero-volt interlock that prevents the output from being switched on unless the output control is at zero. An automatic load discharge system is integrated, discharging the cable under test when the output is switched off or a breakdown occurs.

The internal dumping system has a maximum discharge capacity of 1.25kJ, which corresponds to 7.5μF at 15kV. The PT15-10S Mk2 DC Test Set comes with a standard DP20 discharge probe. This allows for discharging cables with a capacitance of up to 12μΩ at 15kV.

The equipment operates on a supply voltage of 240/115V, single phase, 50/60Hz. Each input can tolerate the following voltage variation:

  • 240V ± 10%

  • 115V +10% and -6%

    • 0 to 15kVDC output voltage

    • 10mA output capability

    • Both voltage and current metered on HV output

    • Automatic earth system for dumping capacitive loads

    • HV output plug & socket

    • Key operated supply switch to prevent unauthorised operation

    • Zero-volt interlock

    • Visual indication of test piece failure

    • Compact unit with lightweight insulated case
