High Voltage Instruments
High Voltage Instruments range of products includes Live Line Testers, High Voltage Detectors, Phase Comparators, Live Line Indicators, and High Voltage Indicators.

T&R Products > High Voltage Instruments

T&R Test Equipment

! NEW !
MCAT+ Micro Cross Arm Tester

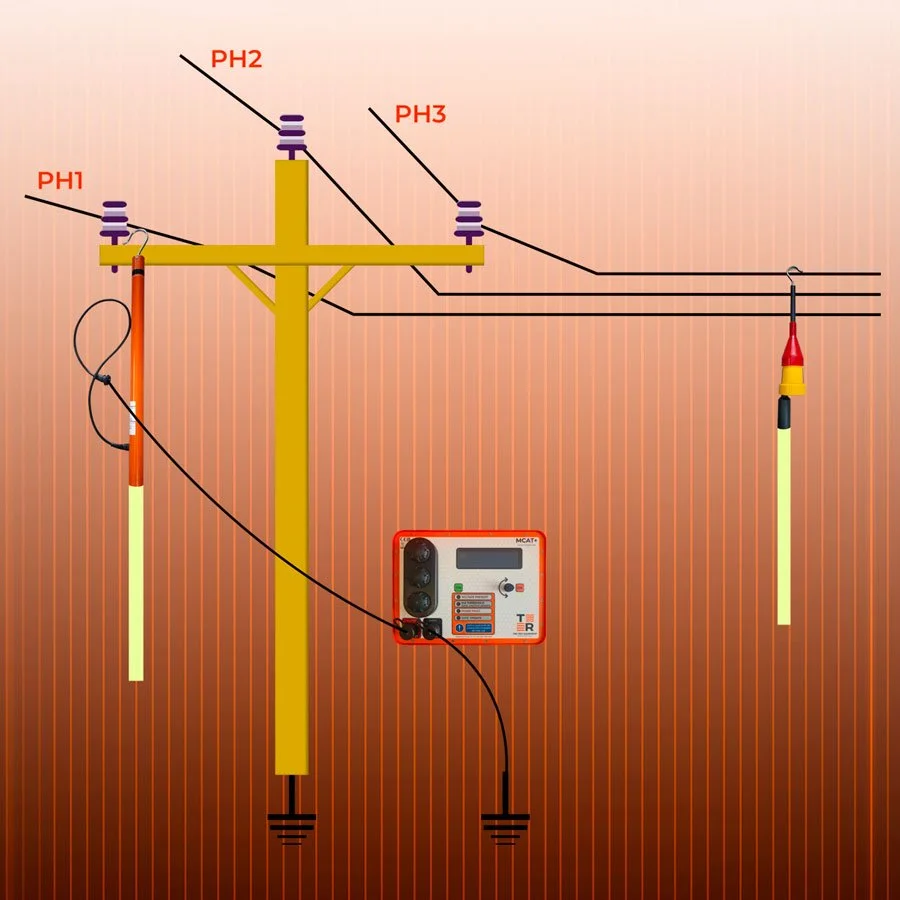

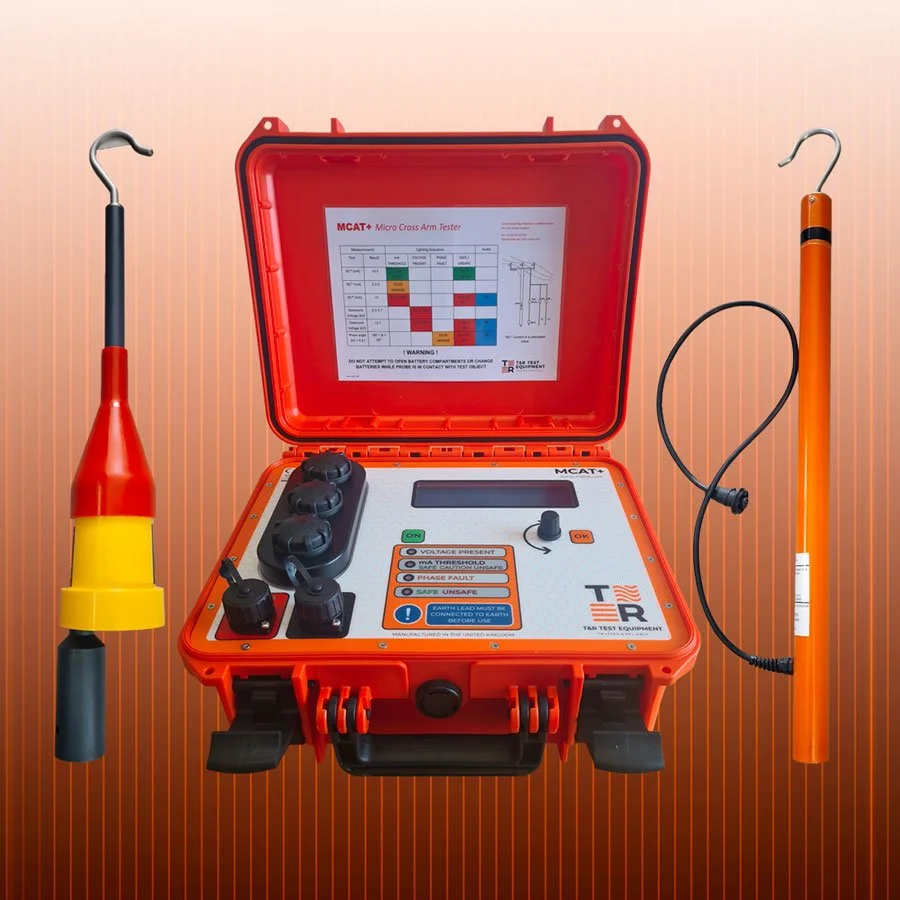

The MCAT+ Micro Cross Arm Tester is a compact, portable instrument designed to detect faulty insulators and measure prospective short circuit current (ISC) on 11kV unearthed wooden poles. It supports both single-phase and three-phase overhead line systems, helping engineers verify pole safety before energization, improving reliability and reducing risk.

    • Detects faulty insulators and unsafe cross arm conditions

    • Measures prospective short circuit current (ISC)

    • High-contrast graphic LCD for clear readings outdoors

    • Built-in self-test and probe validation functions

    • Includes WPC1000TX wireless phase comparator transmitter

    • Battery-powered and portable for field use

    • Supplied with HV probe, leads, and earthing stick

    • Complies with IEC 61481-1 and BS EN 61243-2 standards

MCAT+ Data Sheet

T&R Test Equipment

Live Line Testers

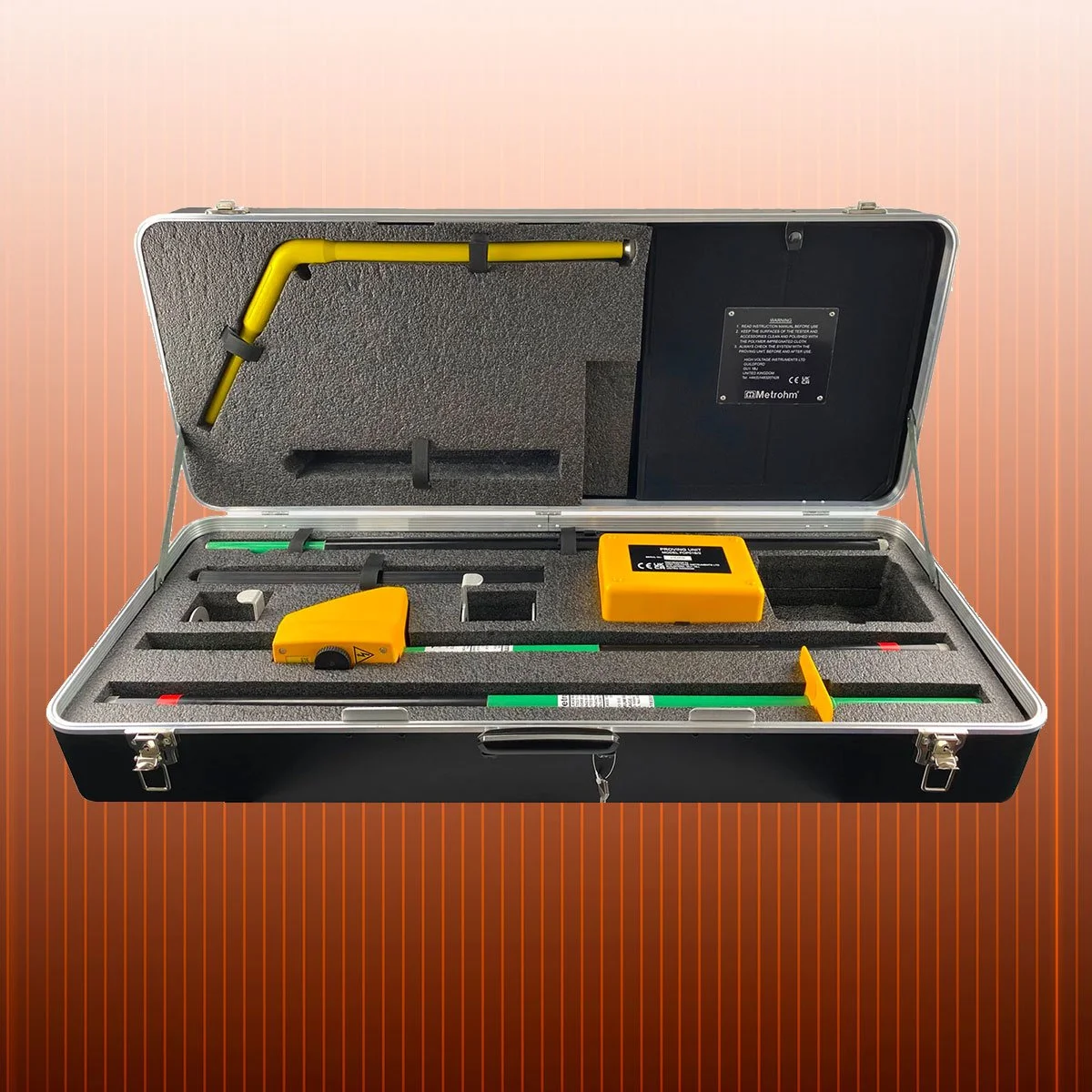

Live Line Tester Kits (LLT) are specifically designed to perform measurements for both live voltage testing and phasing on overhead lines, in substations, and within switchgear compartments. The comprehensive kits include all the necessary components to effectively carry out these tests.

    • Detects HV voltages and compares phases

    • Self-powered operation

    • Indicates the presence of live voltage on circuits up to 33kV

    • Positive phasing test

    • High voltage measurement

    • Suitable for both dry and wet conditions

    • High quality fibreglass rod

    • Proving and repeater units

    • DC version available

    • High immunity to interference field

LLT Data Sheet

T&R Test Equipment

High Voltage Detectors

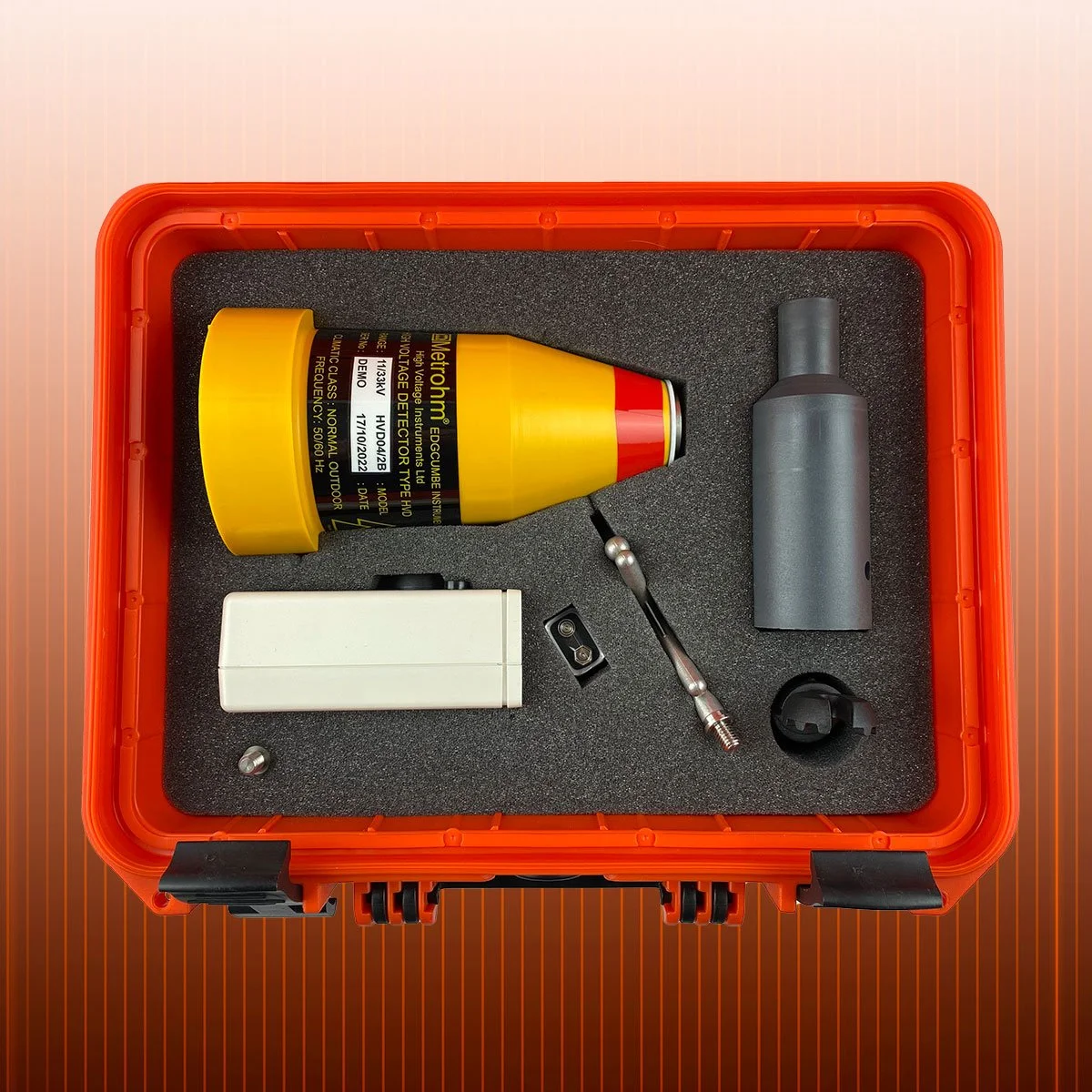

High Voltage Detector Kits (HVD) are an essential tool in the electricity industry. Its primary purpose is to ensure personnel safety by verifying the de-energization of high-voltage lines before work begins. This comprehensive kit, housed in a purpose-designed ABS heavy-duty orange carry case, includes crucial components.

The kit comprises the High Voltage Detector (HVD), contact electrodes (Y and Hook), Star Wheel Adaptor, Bowthorpe Rod Adaptor, polymer cleaning kit, and an instruction manual.

    • Determines whether HV systems are live or dead

    • Automatic alarming above threshold voltage as default

    • Easy to use and Lightweight (0.6kg)

    • Fast response time, less than 1 second

    • High Impact ABS Body

    • Self-test facility

    • Indoor/Outdoor use

    • -25°C to +55°C operating temp range

    • Shock & drop resistant

HVD Data Sheet

T&R Test Equipment

Wireless Phase Comparators

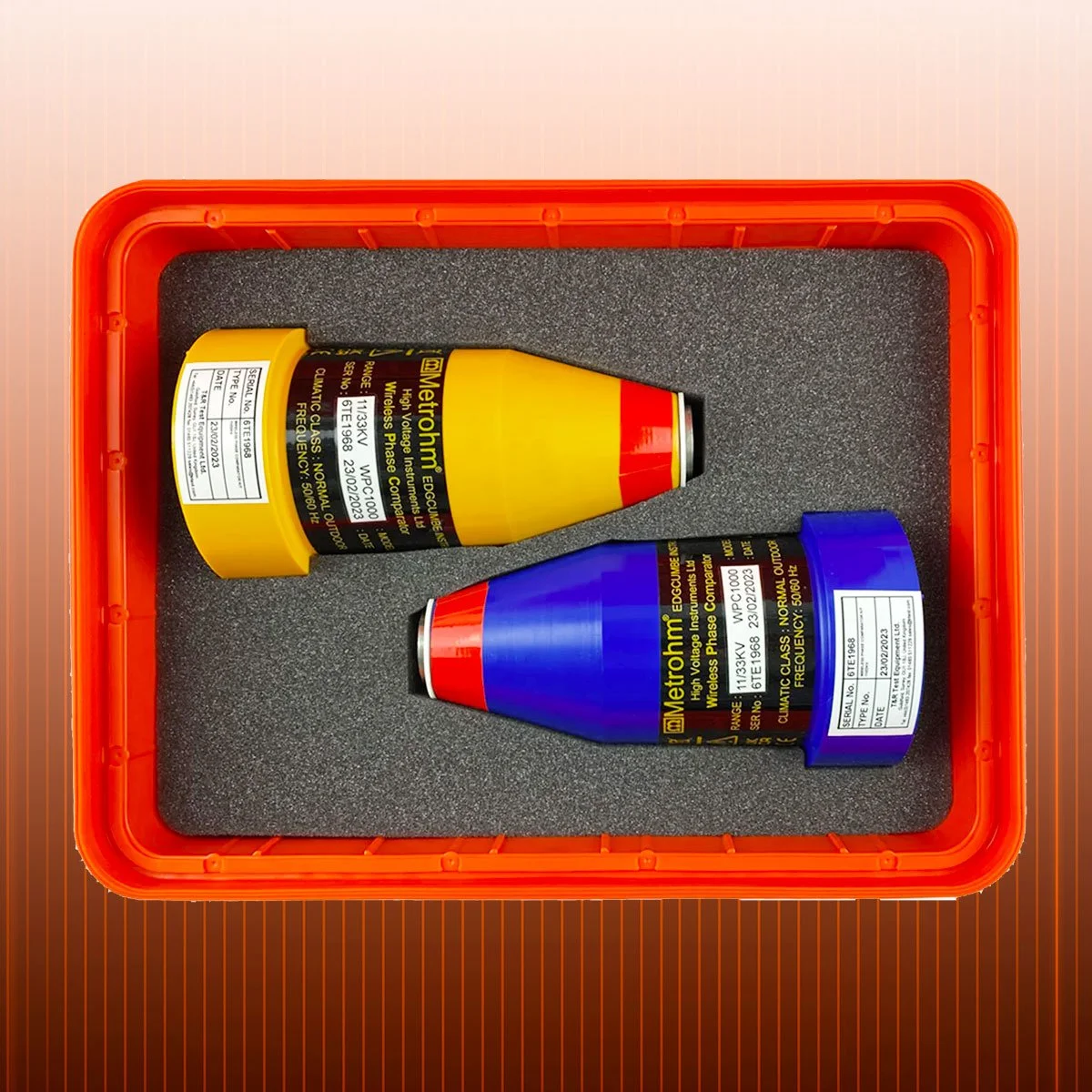

Wireless Phase Comparator Kits (WPC1000) utilize a Transmitter module and a Receiver module to determine the Phase Relationship between two energized conductors at the same nominal voltage and frequency, eliminating the need for connecting cables. The kit is designed to comply with IEC 61481 standards for system voltages.

    • Fast response time

    • High impact ABS body

    • Indoor/Outdoor use regardless of weather conditions

    • Automatic alarming above threshold voltage as default

    • 11kV/33kV up to 66kV/132kV Voltage Range

    • Range – 50m in air

    • ‐25°C to +55°C operating temp range

    • Shock and drop resistant

    • Various rod adaptors available

    • Easy access for battery replacement

    • Self Proving facility

    • Built in self-check facility

    • Operating Frequency – 433.9mHz

WPC Data Sheet

T&R Test Equipment

Dead Break Testers

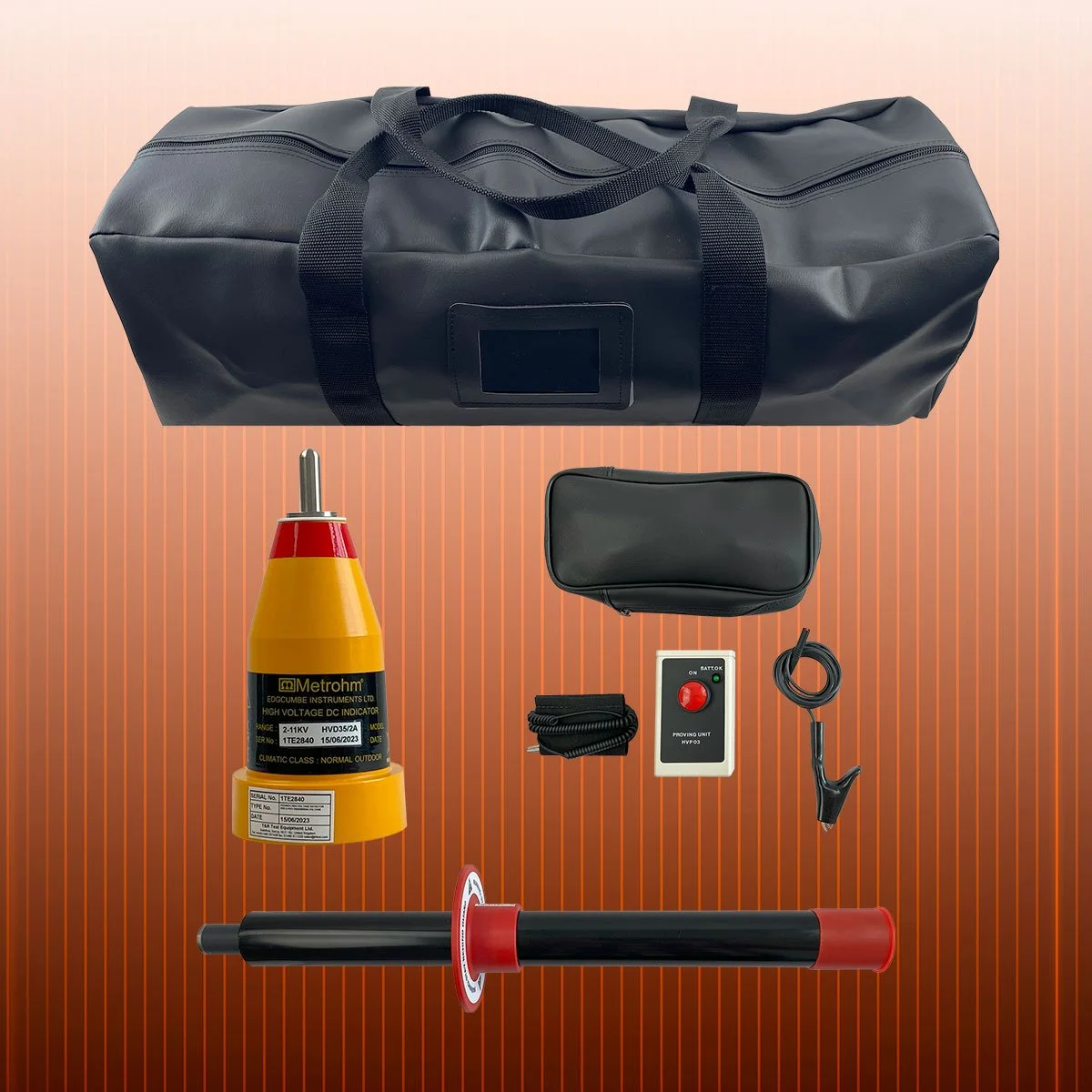

Dead Break Testers (DBT) have been specifically designed for use on capacitive test points of separable connectors and insulated polymeric cables in fused cable boxes. Its primary purpose is to ensure personnel safety by verifying the de-energization of high-voltage lines before work begins.

    • Determines whether HV systems are live or dead

    • Designed for use on capacitive test points of separable connectors

    • Able to test insulated polymetric cables in fused cable boxes

    • 11kV/100V up to 33kV/600V Threshold

    • Automatic alarming above threshold voltage as default

    • Easy to use and Lightweight (0.6kg)

    • Fast response time , less than 1 second

    • High Impact ABS body

    • Self test facility

    • Indoor/Outdoor use

    • -25°C to +55°C operating temp range

    • Shock & drop resistant

DBT Data Sheet

T&R Test Equipment

Live Line Indicators

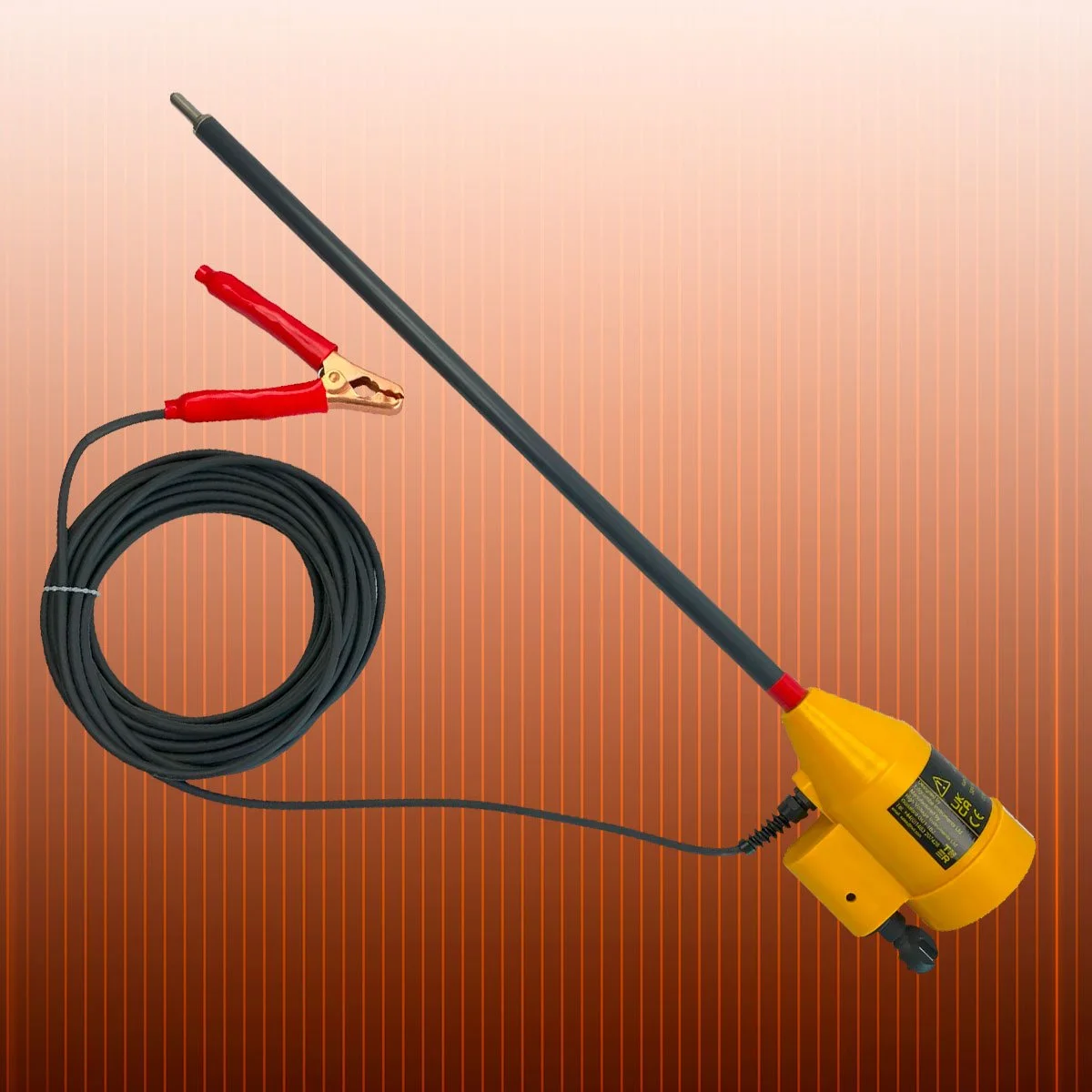

Live Line Indicators (LLI) are sophisticated, battery-operated electronic units specifically engineered for precise testing of DC systems up to 3000V, particularly in the context of Transit Railway systems. It serves as a critical tool to ensure optimal safety during maintenance or installation procedures.

    • Can be used on DC high voltage overhead lines up to 3000VDC

    • Earth lead and clamp attached to long-length handle

    • Red LED indicators when voltage is detected

    • Loud 70dB alarm when voltage is detected

    • Audible indication: Buzzer, 3.1 kHz tone, modulated @ 2Hz

    • Can be used on third rail installations

    • Battery check function

    • Standard Threshold: up to 1000V DC

      Resistor Chain: up to 6MΩ

    • Operating time: 5 minutes nominal

LLI Data Sheet
