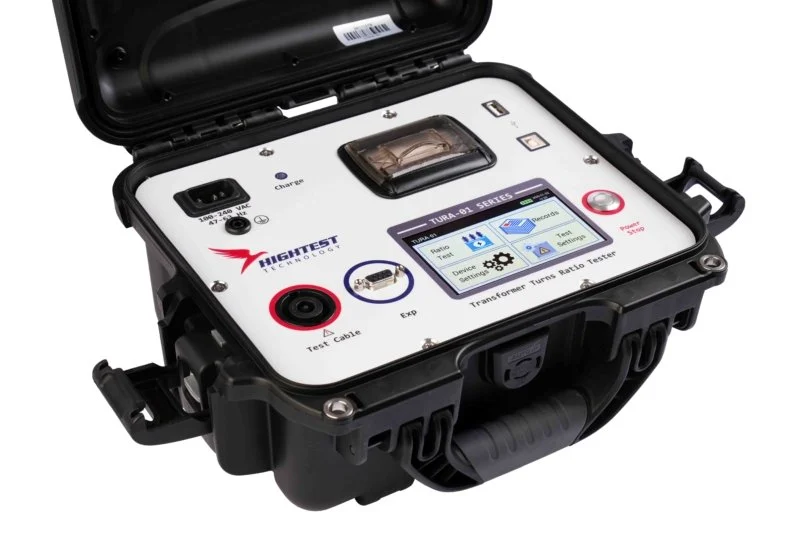

HIGHTEST TURA-01
100V Single-Phase Transformer Turns Ratio Tester

Single-phase TURA series devices can test transformer turn ratio and calculate error as a percentage. By testing the turn ratio the operator can understand how much voltage they will get from the secondary side. TURA single-phase series turn ratio meters can also test three-phase transformers. It’s one of the most accurate devices with its wide range (0.8 to 33,000) ratio measurement capability and 0.08% high accuracy.

KEY FEATURES

  • Single-phase and three-phase turns ratio measurement

  • Ranges from 0.8 to 33,000 Ratio Measurement

  • High Accuracy (0.08%)

  • 1V, 4V, 10V, 40 V and 100 V AC Test Voltages

  • Ratio error measurement, excitation current, phase angle,
    polarity measurement

  • Built-in Battery & Printer Internal memory, USB Flash Drive

  • PC control via USB cable

  • Optional Bluetooth control and communication

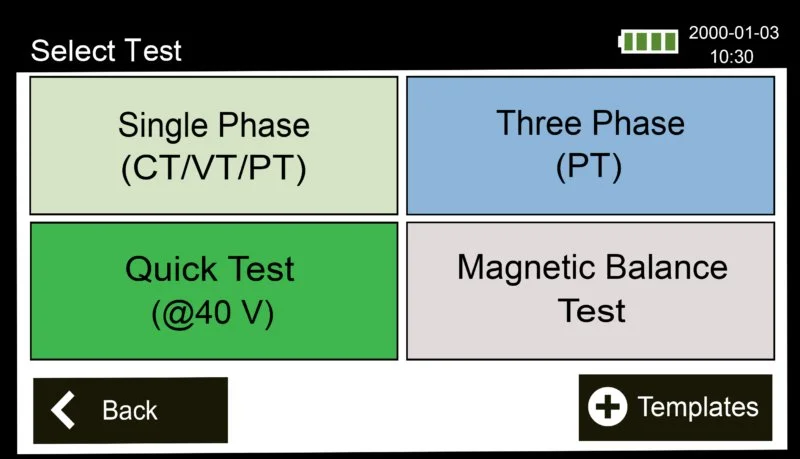

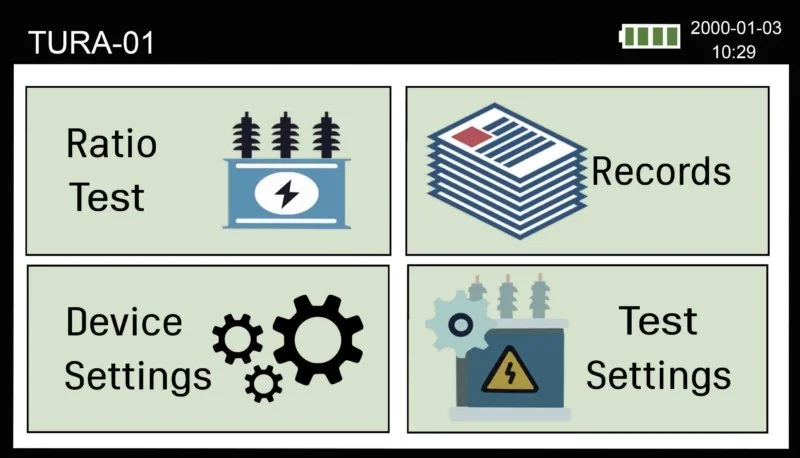

  • 4.3-inch colour touch display

KIT INCLUDES

  • Power Cable, Ground Cable, 5 m Test Cable Set, USB Cable, Printer Paper (x2), USB Flash Drive, Instruction Manual (Soft Copy), DMP Software, Hard Carry Case, Cable Bag

OPTIONS

  • Bluetooth (TURA-01 BLUE)

TURA-01 CONNECTIONS

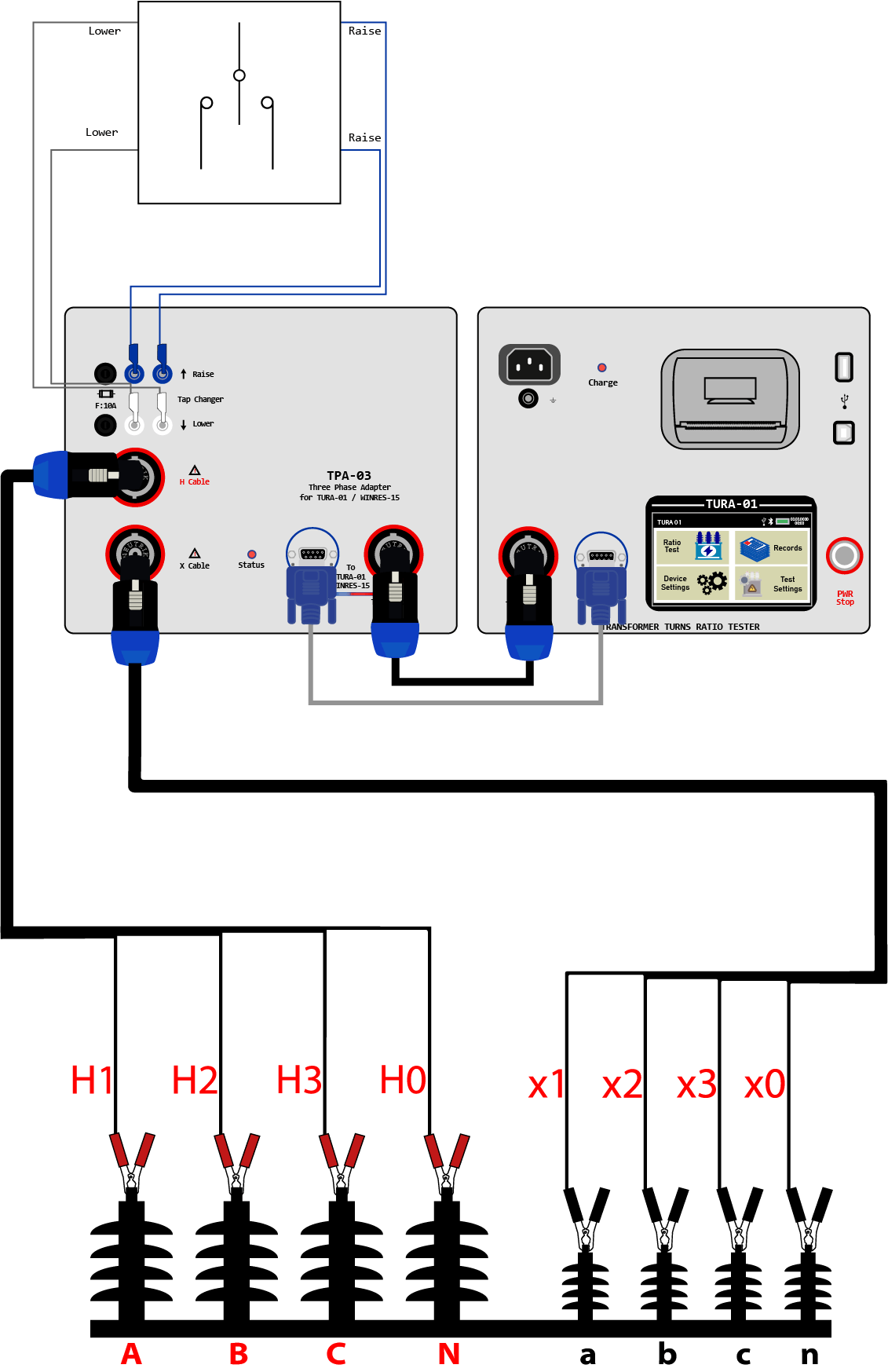

TURA-01 CONNECTIONS with TPA
