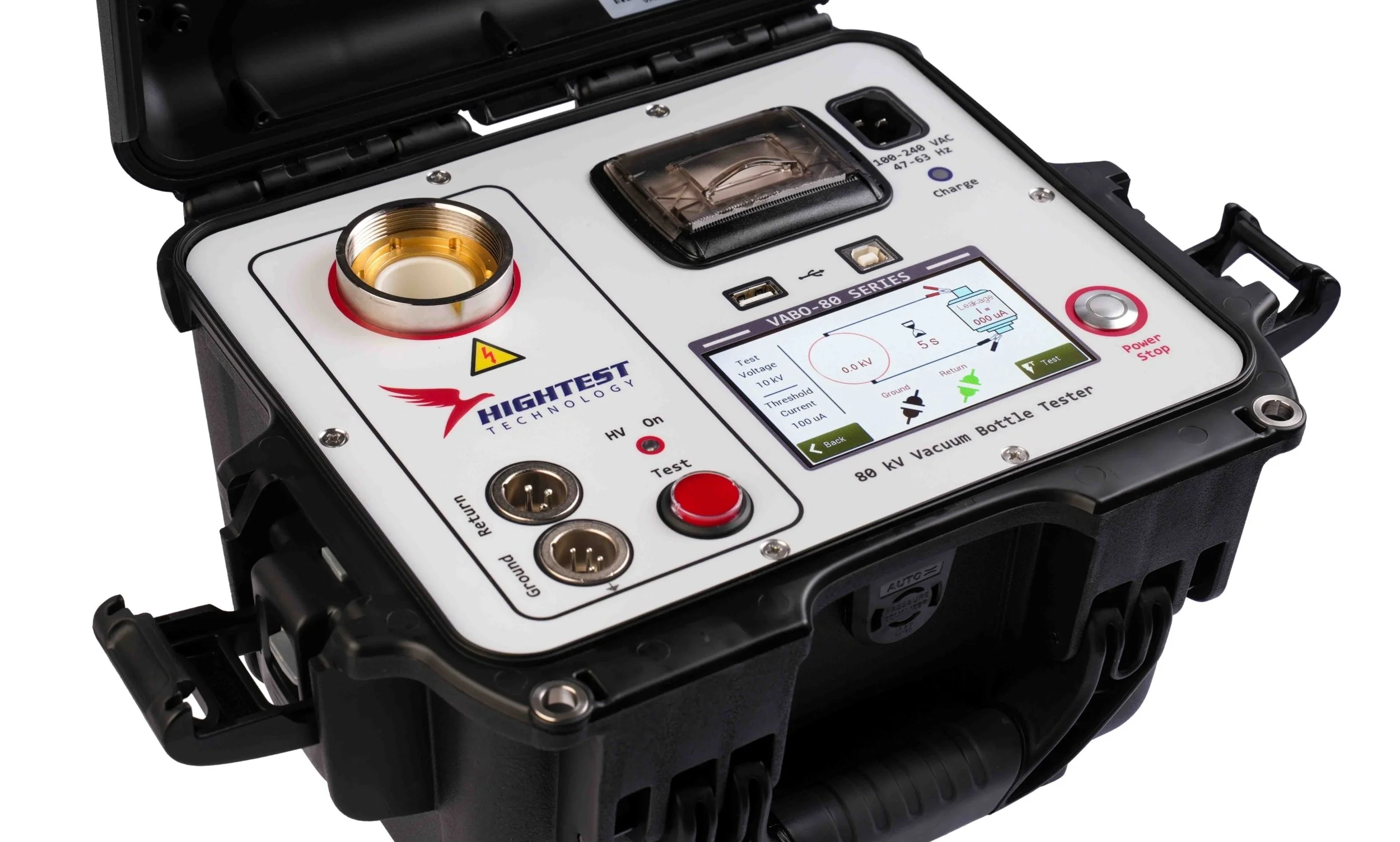

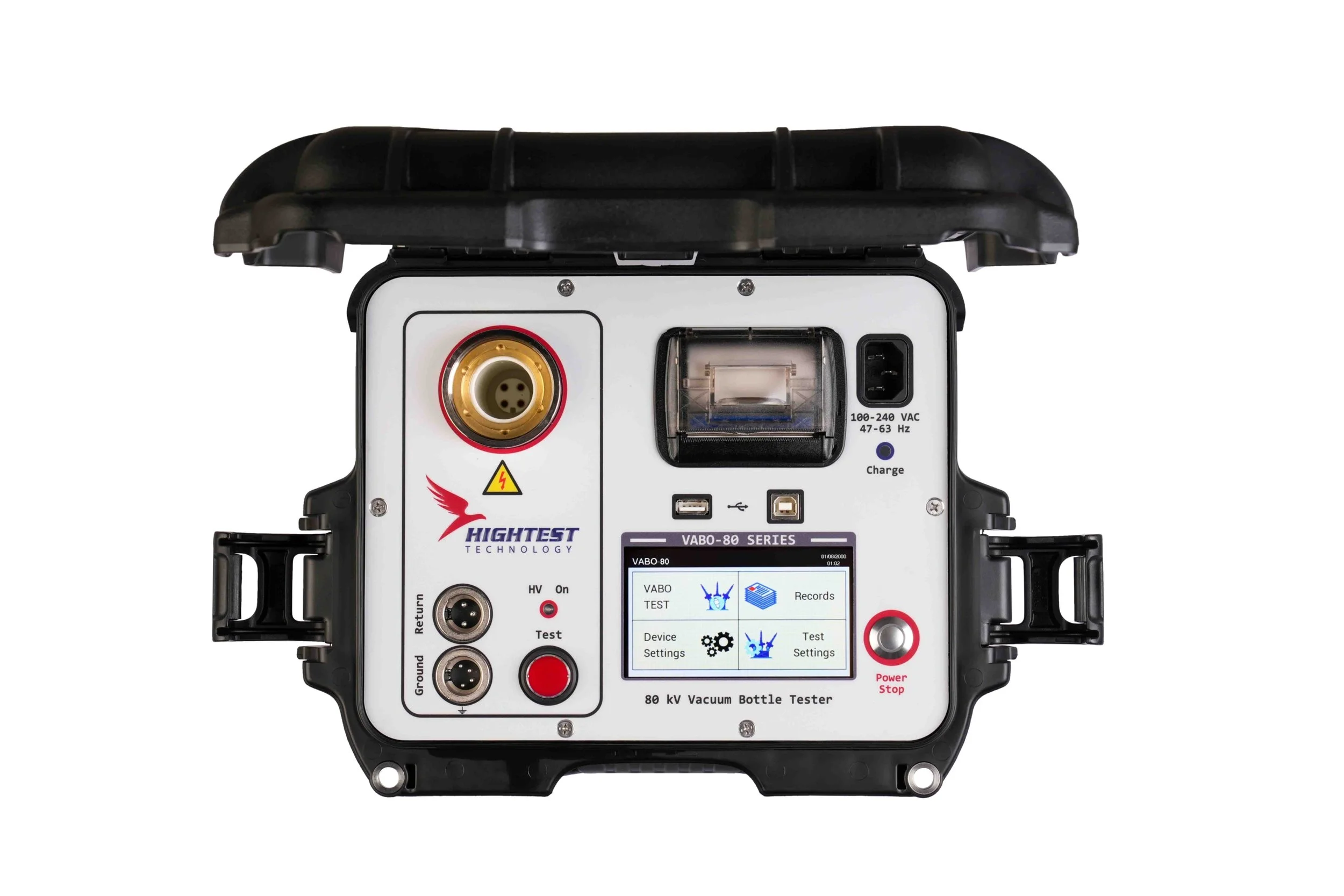

HIGHTEST VABO-80B
80kV Vacuum Bottle Tester with Built-in Battery & Printer

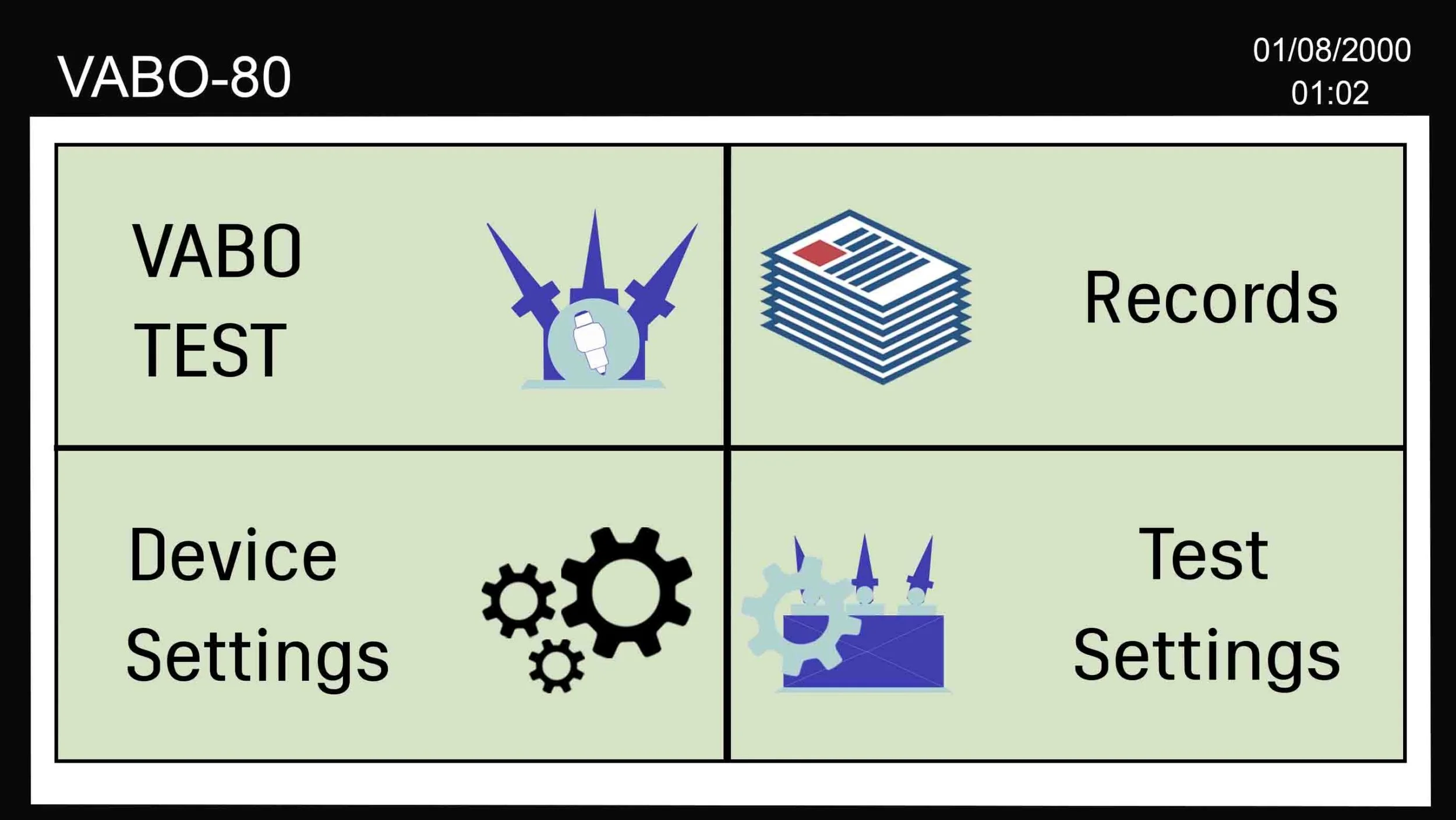

The VABO-80B is designed using advanced engineering technology to test circuit-breaker vacuum bottles up to 80 kV DC. It has fast, easy and accurate measurement features through its user-friendly software. VABO-80B is a battery-powered device that allows users to perform tests even without a power supply during on-field tests.

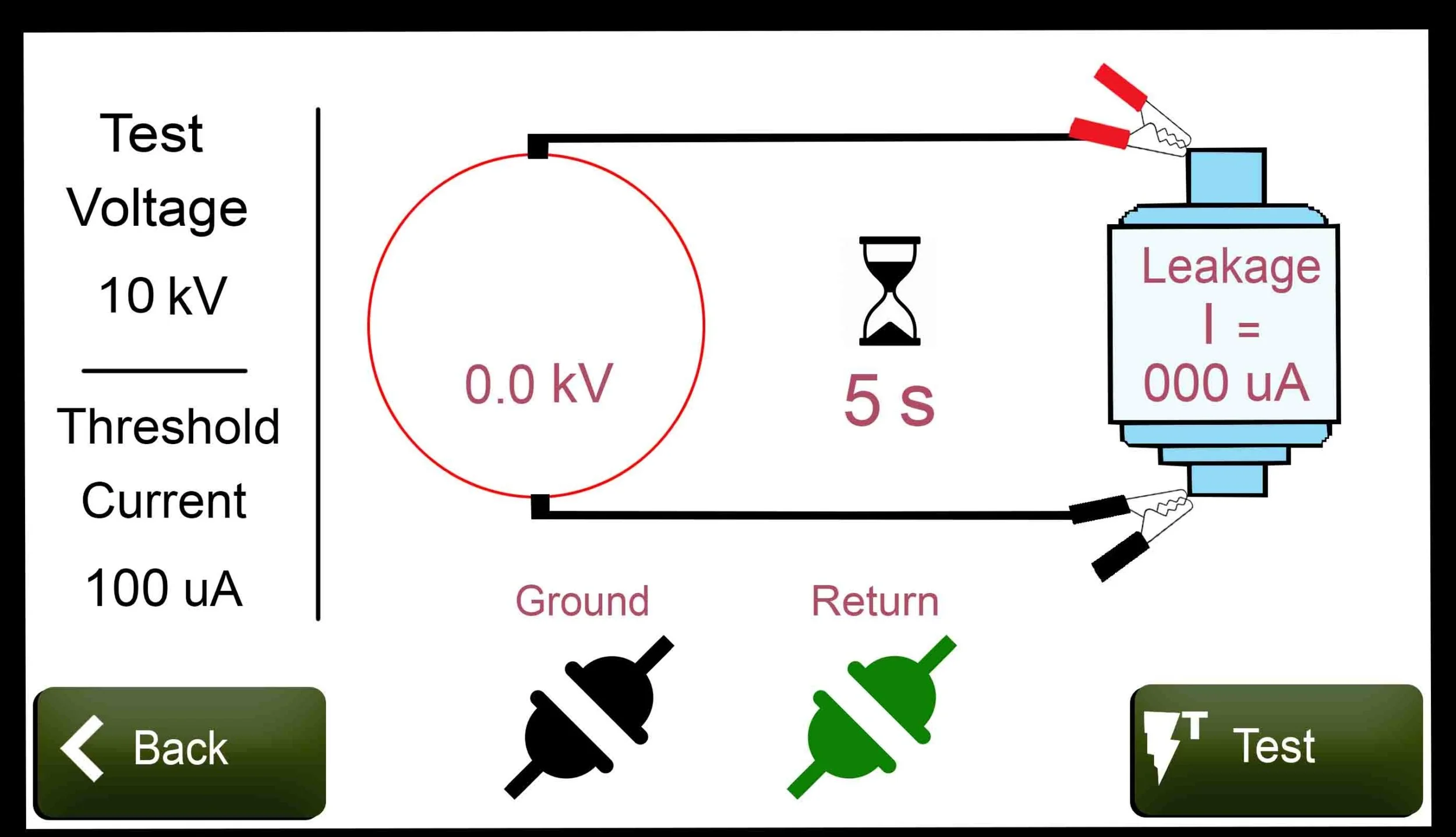

Users can select the test voltages from 10kV to 80kV DC with step voltages of 1kV, and the user can define the test time from 5 seconds to 2 minutes. The leakage current preset values of VABO-80B are 100 µA, 200 µA and 300 µA. The test can be performed after setting the output voltage and test time with a predefined cutoff for leakage current.

KEY FEATURES

• Circuit Breaker Vacuum Bottle Interrupter Testing

• Automatic Testing

• 10 kV to 80 kV DC with 1 kV step voltages

• High Accuracy (1.5 %)

• 100 μA, 200 μA and 300 μA leakage current preset value

• Battery

• 2.25-inch Built-in Printer

• Internal memory (storage up to 200 records)

• External Memory- USB flash drive

• PC Software

• 4.3-inch TFT touch colour Display

• IP67 Protection Class (case closed)

• Weight: 9 lbs.

KIT INCLUDES

• VABO-80B, Power Cable, Ground Cable, 3m Test Cable, USB Cable, Printer Paper (x2), USB Flash Drive, Instruction Manual (Soft Copy), DMP Software, Soft Cable Case

OPTIONS

• Hard Cable Case
