PowerMaster® Meter Training Benches
3-Phase Training Simulators for Metering Technicians

The PowerMaster® 8 Series Meter Training Benches provide a state-of-the-art platform for hands-on learning and advanced meter testing. Designed to support utility professionals and trainees, these benches offer a controlled environment for mastering meter installation, testing, and troubleshooting. With customizable configurations, the 8 Series supports a wide range of meter types and testing scenarios, including accuracy verification, CT/PT ratio testing, and wiring analysis.

Durable and easy to use, the PowerMaster® 8 Series Training Benches ensure comprehensive training and reliable testing results, making it an essential tool for workforce development and skill enhancement.

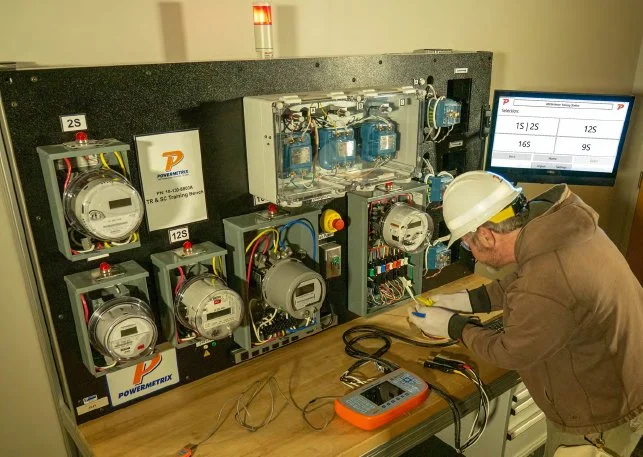

  • Troubleshoot Meter Connections

  • Troubleshoot Instrument Transformers & Wiring

  • Simulate Errors Found in the Field

  • Safe, Controlled Environment

  • User Interface

    • Touchscreen (21.5") Custom Control System
    • Custom software for voltage and current control
    • Articulating mounting arm

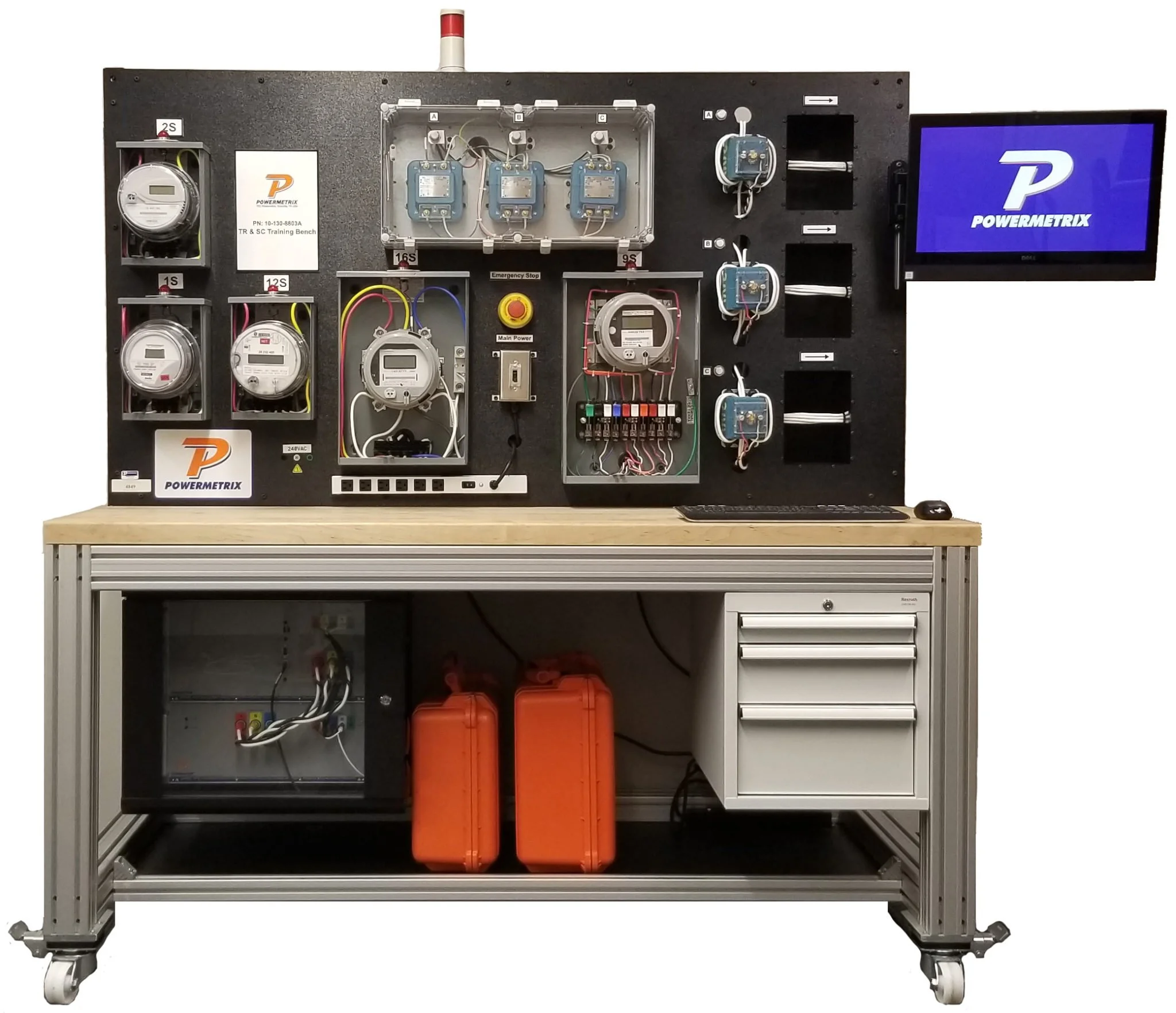

    Training Bench

    • Locking Casters
    • Locking Drawers
    • Storage Shelf
    • Brackets for Wall Mounting

    Three Phase Voltage and Current Source
    • 19" Rack mounted design integrated in bench
    • 30-480V (277 phase-Neutral; 480V phase-phase) RMS max per phase
    • 100mA-30A RMS max per phase current source
    • Phase angle adjustment from 0° to 360° in 0.1° steps each phase
    • Frequency generation at 60Hz
    • Ability to remove from bench for maintenance

    Metering Services
    • 1S Meter (120V)• 2S Meter (240V)
    • 12S Meter (3W Network)
    • 16S Meter (4W Wye)
    • 9S Meter (4W Wye)

    Current Transformers
    • 200:5 Window Type Instrument CTs

    Potential Transformers (with protective enclosure)
    • 2:1 (240V:120) Instrument PTs

    Bench Dimensions
    • 73" width x 79" height x 36" depthWeight
    • 340kg (750 lbs)

    Power Requirements
    • Auxiliary Power Input: 1x Single Phase 120V Outlet with Ground, 15A
    • Bench Power Consumption: 700VA max
    • PC Power Consumption: 200W

    Operating Environment
    • 25°C ± 5°C
    • 30% to 80% Relative Humidity, Non Condensing

    Warranty
    • 2 Year Parts and Workmanship

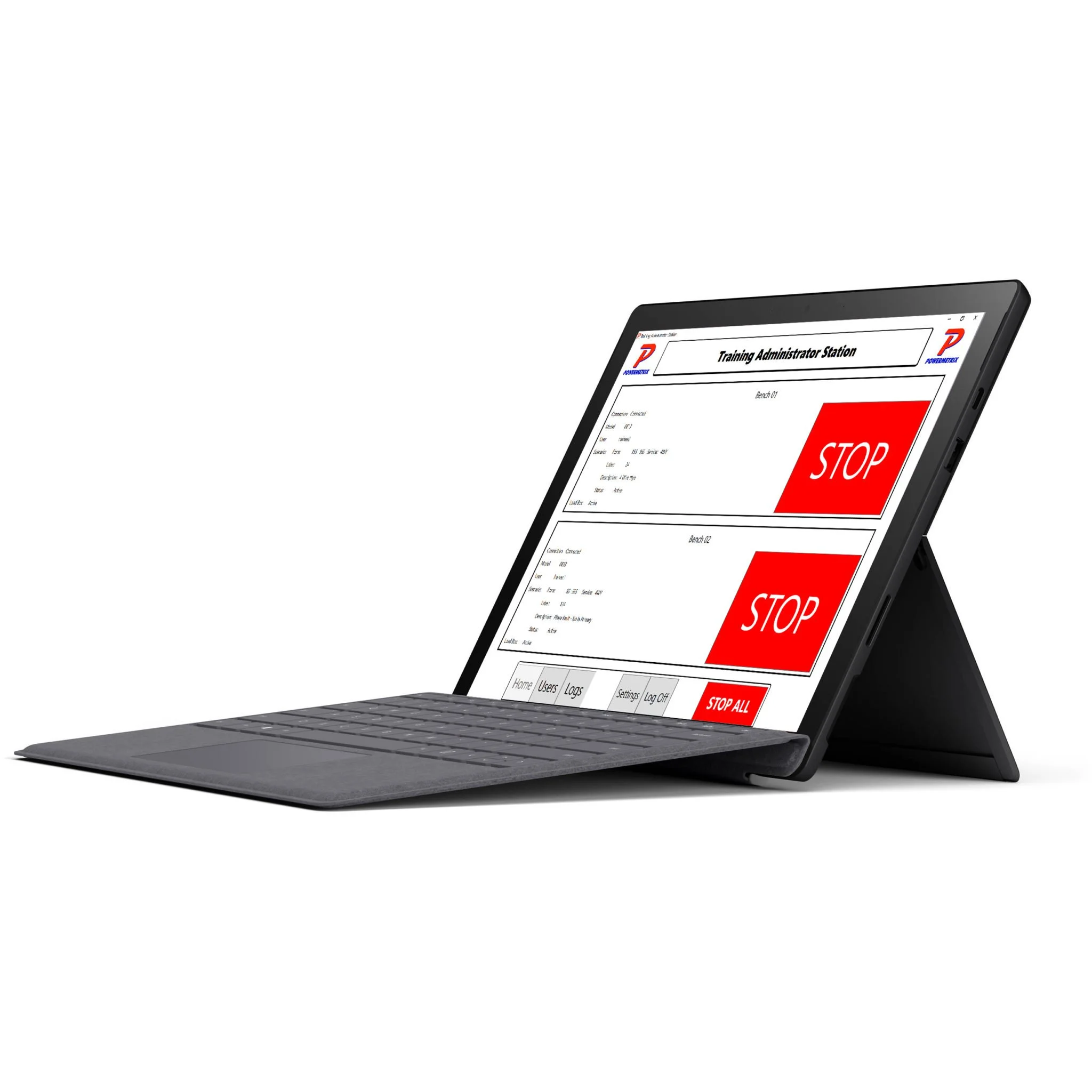

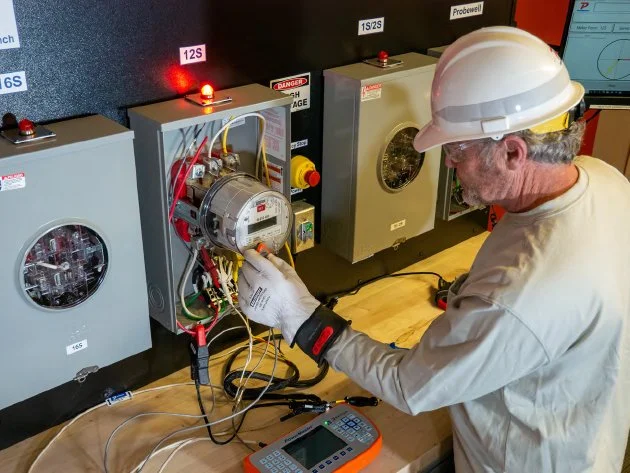

  • Training Administrator Station (TAS)
    • Interface on Windows Tablet In Ruggedized Case
    • Full Control Up to 4 Training Benches In One Display
    • WIFI Communication to Each Training Bench
    • Display of Bench Status, Scenarios, and Trainee's Performance

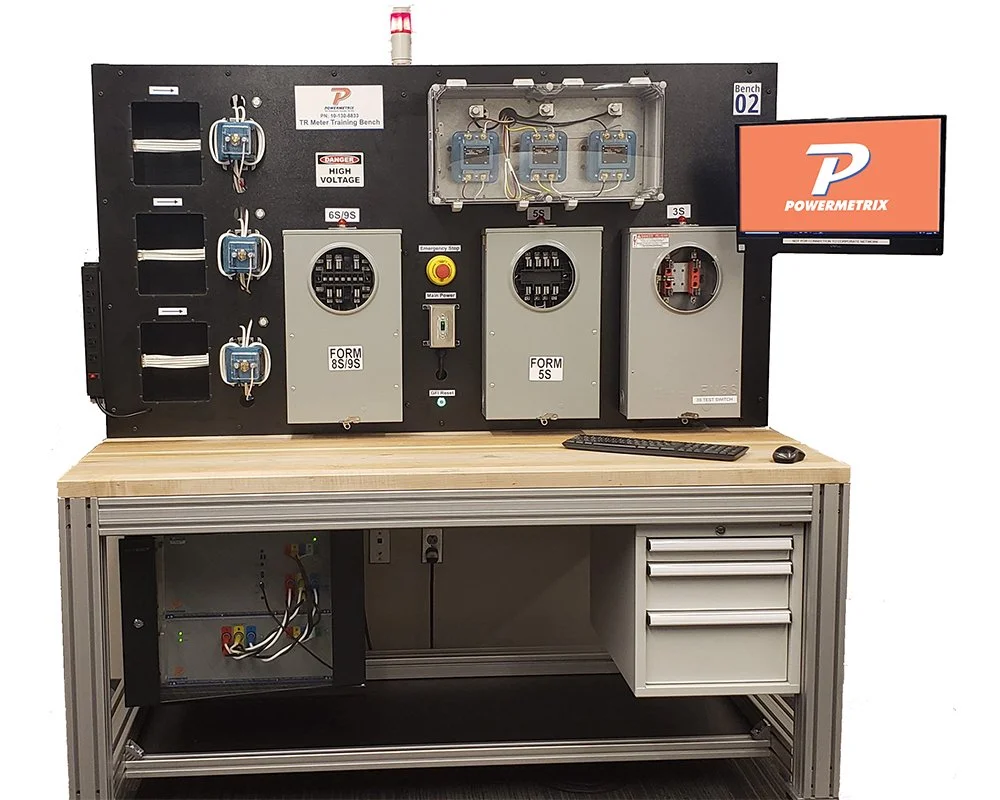

    Training Bench
    • Locking Casters
    • Locking Drawers • Storage Shelf
    • Independent 240V, 500VA Source with 4mm inputs
    • Custom Wiring Color

    Three Phase Voltage and Current Source
    • 19" Rack mounted design integrated in bench
    • 69-480V (277 phase-Neutral; 480V phase-phase) RMS max per phase
    • 100mA-30A RMS max per phase current source
    • Phase angle adjustment from 0° to 360° in 0.1° steps each phase
    • Frequency generation at 60Hz
    • Ability to remove from bench for maintenance

    Metering Services
    • 1S Meter (120V)
    • 2S Meter (240V)
    • 12S Meter (3W Network & Delta)
    • 16S Meter (4W Wye & 4W Delta)
    • 120V/240V Socket for Probewell Equipment

    Bench Interface
    • Touchscreen (21.5") Custom Control System
    • Custom software for voltage and current control
    • Articulating mounting arm

    Bench Dimensions
    • 73" width x 79" height x 36" depth

    Weight
    • 340kg (750 lbs)

    Power Requirements
    • Auxiliary Power Input: 1x Single Phase 120V Outlet with Ground, 15A
    • Bench Power Consumption: 700VA max
    • PC Power Consumption: 200W

    Operating Environment
    • 25°C ± 5°C
    • 30% to 80% Relative Humidity, Non Condensing

    Warranty
    • 2 Year Parts and Workmanship

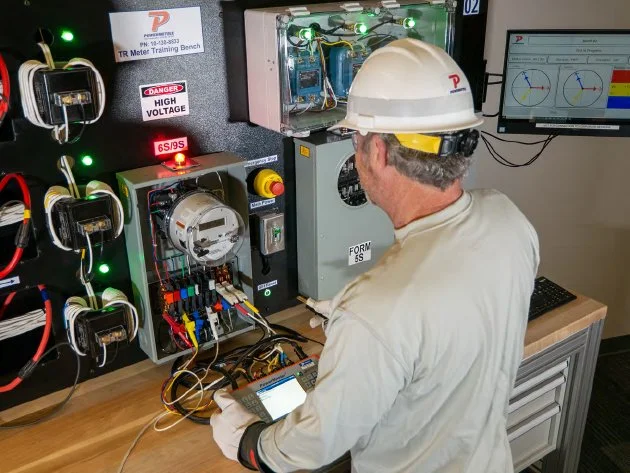

  • Training Administrator Station (TAS)
    • Interface on Windows Tablet In Ruggedized Case
    • Full Control Up to 4 Training Benches In One Display
    • WIFI Communication to Each Training Bench
    • Display of Bench Status, Scenarios, and Trainee's Performance

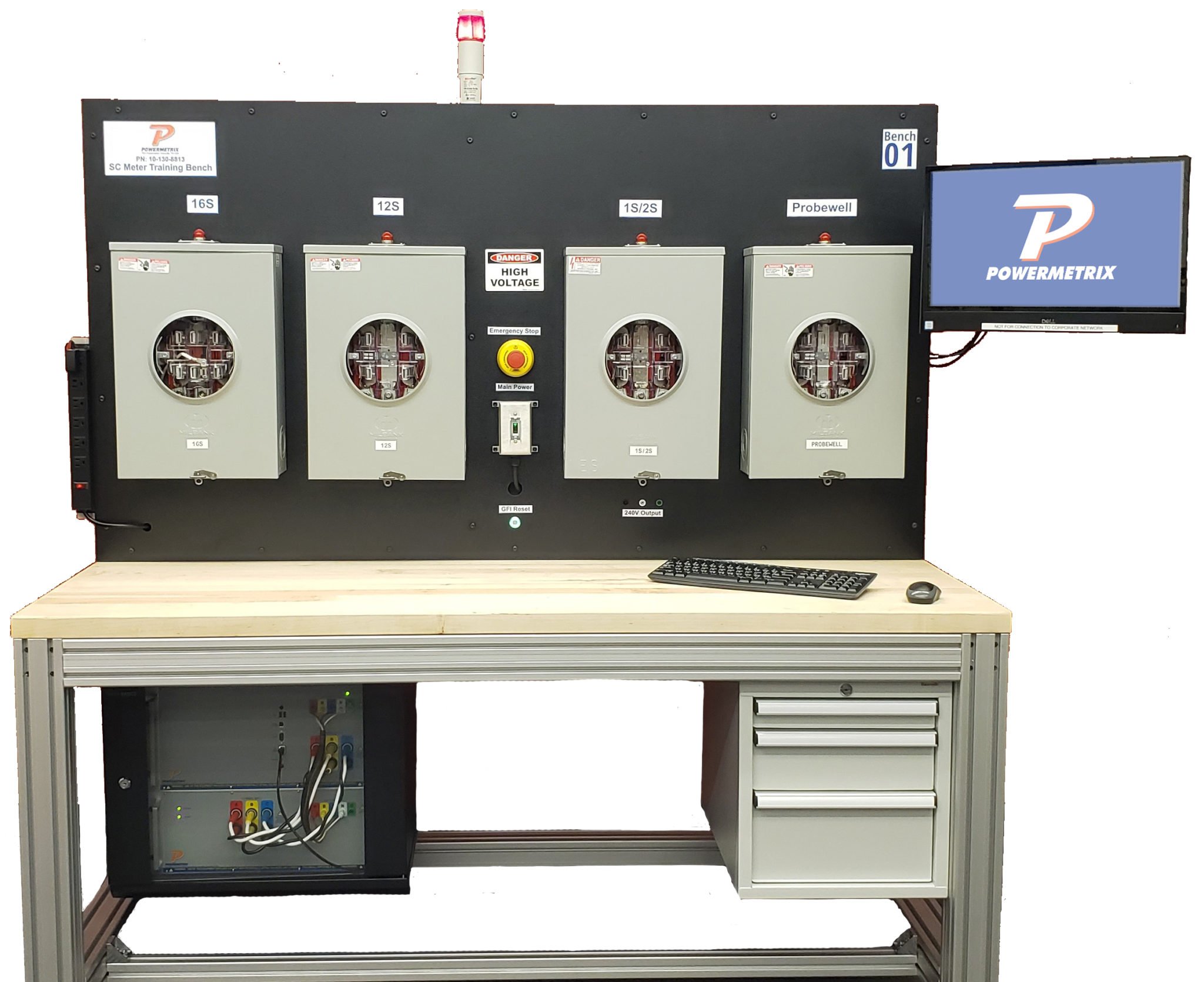

    Training Bench
    • Locking Casters
    • Locking Drawers
    • Storage Shelf
    • Custom Wiring Color & Test Switch Conguration

    Three Phase Voltage and Current Source
    • 19" Rack mounted design integrated in bench
    • 69-480V (277 phase-Neutral; 480V phase-phase) RMS max per phase
    • 100mA-30A RMS max per phase current source
    • Phase angle adjustment from 0° to 360° in 0.1° steps each phase
    • Frequency generation at 60Hz
    • Ability to remove from bench for maintenance

    Metering Services
    • 3S Meter (120V & 240V) • 4S Meter (120V)
    • 5S/45S Meter (3W Delta & 3W 1-Phase)
    • 6S/36S Meter (4W Wye Zcoil)
    • 9S/8S Meter (4W Wye & 4W Delta)

    Current Transformers
    • 200:5 Window Type Instrument CTs
    • 600:5 Window Type Extended Range CTs (optional)

    Potential Transformers (with protective enclosure)
    • 2:1 (240V:120) Instrument PTs
    • 2.5:1 (300:120) Instrument PTs (optional)

    Bench Interface
    • Touchscreen (21.5") Custom Control System
    • Custom software for voltage and current control
    • Articulating mounting arm

    Bench Dimensions
    • 73" width x 79" height x 36" depth

    Weight
    • 340kg (750 lbs)

    Power Requirements
    • Auxiliary Power Input: 1x Single Phase 120V Outlet with Ground, 15A
    • Bench Power Consumption: 700VA max
    • PC Power Consumption: 200W

    Operating Environment
    • 25°C ± 5°C
    • 30% to 80% Relative Humidity, Non-Condensing

    Warranty
    • 2 Year Parts and Workmanship
