Phenix Technologies is a global leader in designing and manufacturing high-voltage, high-current, and high-power electrical testing equipment, serving industries such as utilities, manufacturing, and research with innovative, reliable solutions.

PHENIX BK130 Series
Aerial Lift, Elevated Platform and Insulated Boom Testers

Complies with the latest ANSI A92.2 and IEC 61813 standards. Also, capable of testing double and horseshoe liners. The standard safety features combined with advanced metering make these test systems the premium choice for testing single trucks to maintaining a whole fleet.

Models: PHENIX BK130/36 or BK130/36-B, BK300

    • Ideal for testing aerial lift devices and elevated platforms

    • Capable of testing double and horseshoe liners (BK130/36)

    • Complies with latest ANSI and IEC standards (A92.2-2015 / IEC 61057)

    • Suitable for common dielectric and insulation testing requirements

    • Lightweight and ruggedly constructed for years of field use

    • Simple set-up and operation

    • Traceable Calibration to NRC (National Research Council Canada)

    • Models available with easy to read digital meters or a full-color touch screen with data acquisition

    • ISO17025 Calibration & Uncertainty Analysis available

PHENIX 6CP and 6CB Series
Field & Lab AC Dielectric Test Sets (15-200kV)

Suitable for dielectric testing a wide range of electrical apparatus. This portable rugged line of AC high voltage test equipment is ideally suited for use in the field or in the laboratory. The 6CP and 6CB line offers a complete test system in a mobile package. All units use a combination control and regulator enclosure and a separate high voltage section.

Models: PHENIX 6CP, 6CB

    • A premier line of AC Dielectric Test Sets with ratings from 15 to 200 kV AC

    • Lightweight and ruggedly constructed for years of field use

    • Simple set-up and operation

    • Low partial discharge output

    • Models available with easy to read digital meters or a full-color touch screen display with data acquisition

    • ISO17025 calibration upon request

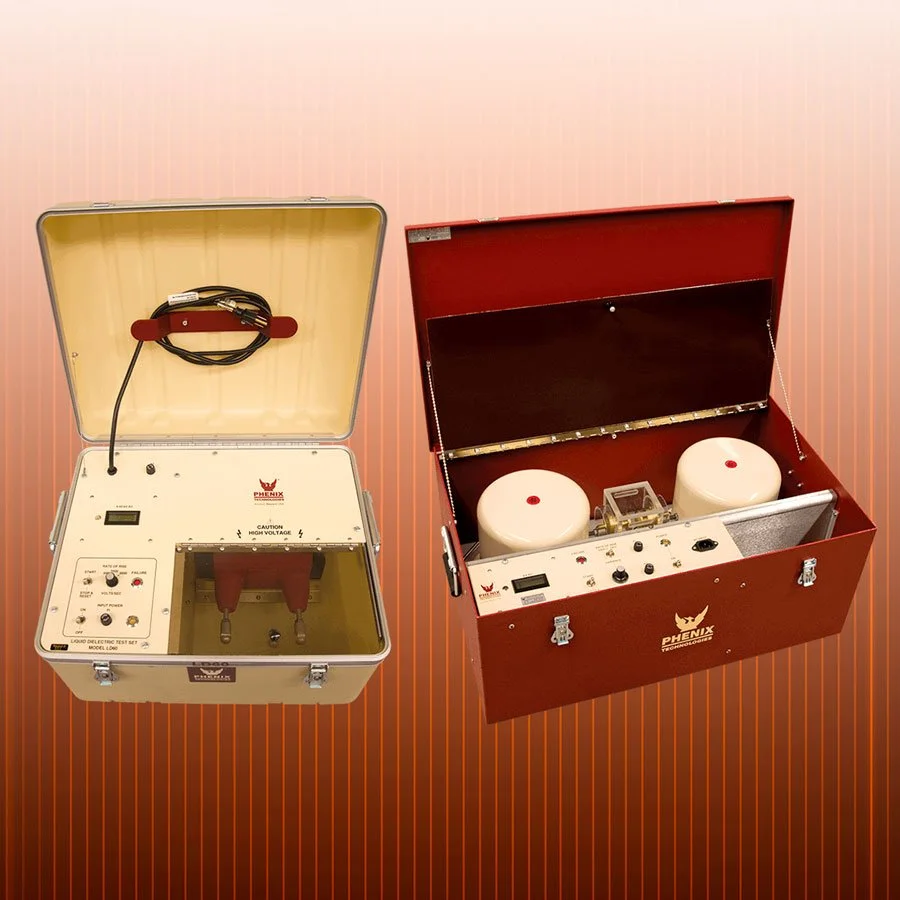

PHENIX LD Series
Liquid/Oil Dielectric Test Sets

An economical line of Liquid/Oil Dielectric Test Sets designed to test and measure the breakdown voltage of insulation fluids used in transformers, capacitors, bushings and related high voltage equipment.

With the appropriate oil vessel test cell, these test sets are designed to perform tests in accordance with standards ASTM D1816, ASTM D877, IEC 60156, BS 148, VDE 0370.

Models: PHENIX LD60, LD75, LD100

    • Lightweight and ruggedly constructed for years of field or lab use

    • Economical liquid dielectric testing solution

    • Simple set-up

    • Semi-automatic operation

    • ISO17025 calibration upon request

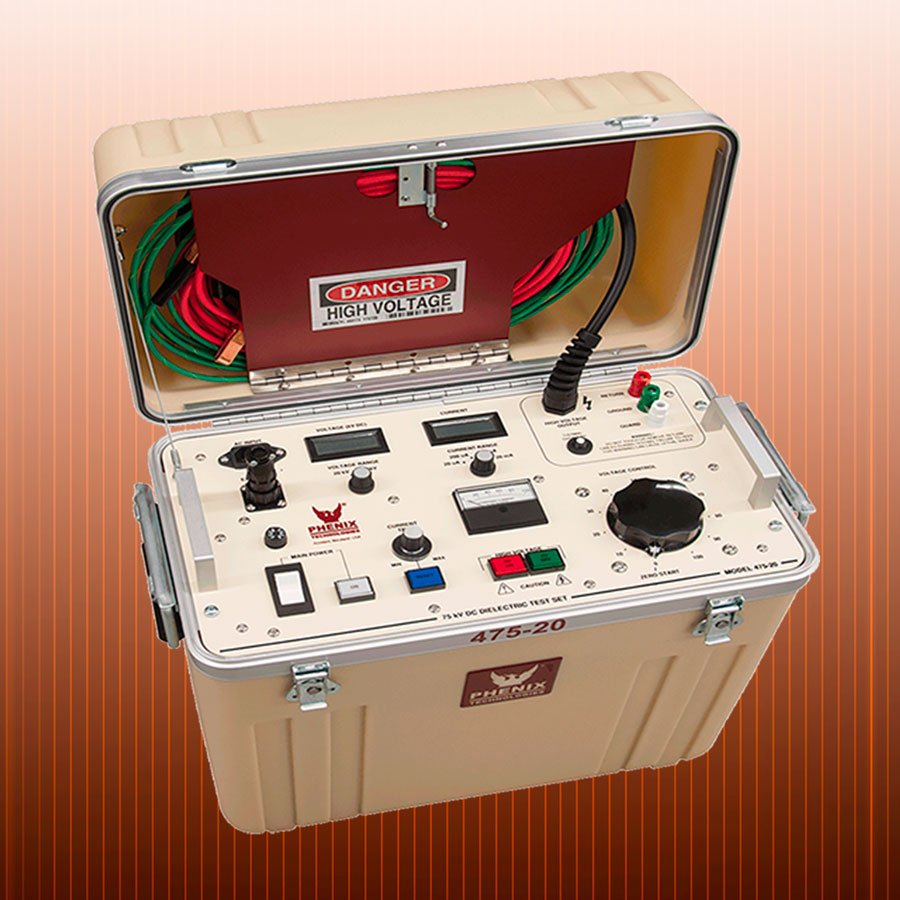

PHENIX Portable DC HiPots (40-200kV)

Perform accurate DC HiPot testing of electrical switchgear, cables, motors, generators, and protective equipment.

Models: PHENIX 475-20, 440-20B, 4200-5

    • Lightweight and ruggedly constructed for years of field use

    • Models available with easy to read digital meters or a full-color touch screen display with data acquisition

    • Internal discharge device

    • Shielded high voltage output cable

    • ISO17025 calibration upon request

PHENIX PAD and PM Series
AC/DC and DC HiPots/Megohmmeters

Dielectric Withstand Testing, Insulation Resistance and Leakage Current Measurement for either leakage current flow through or insulation resistance levels of the ground insulation of the test object.

Models: PHENIX PAD10-25, PAD56, PM15-2, PM5, PM20

    • Used for testing the insulation of switchgear, cables, motors, transformers, generators, and many other electrical devices.

    • Models available with additional testing capabilities including Dielectric Withstand Testing and Leakage measurements

    • Leakage current flow through (or insulation resistance levels of) the ground insulation of the test object

    • An excellent auxiliary device for detecting cable failures

    • Use for predictive, preventive maintenance on all electrical apparatus

    • Lightweight and ruggedly constructed for years of field use

    • Units feature easy to read analog meters and user-friendly controls

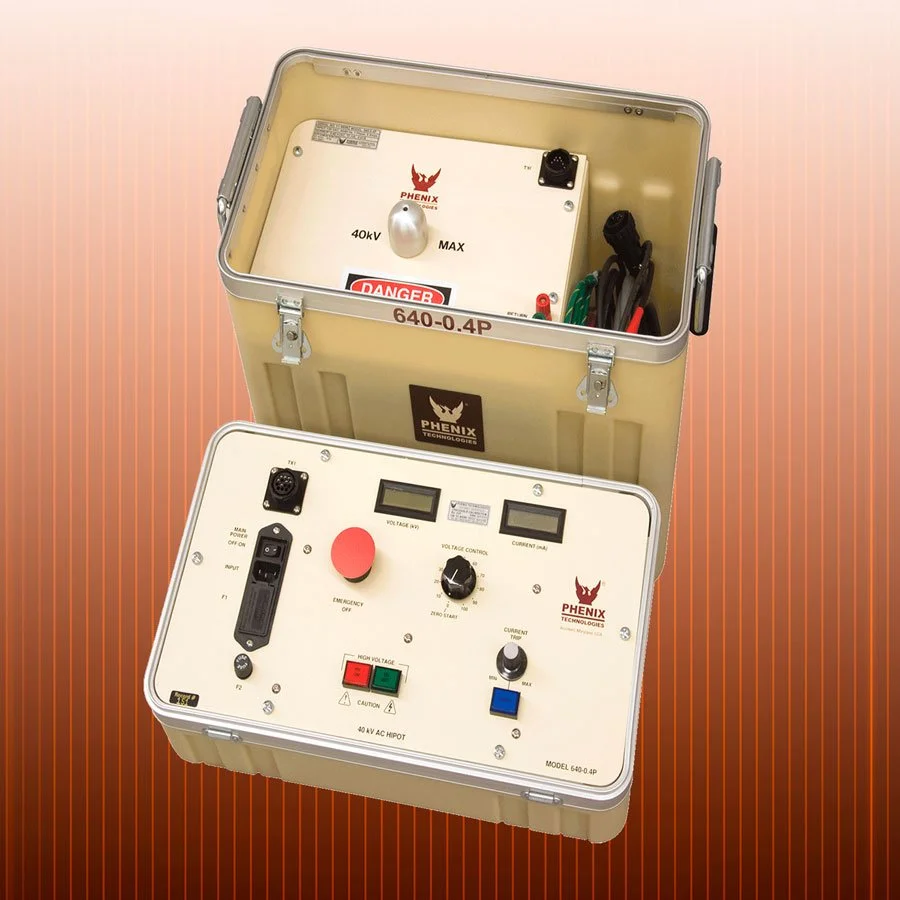

PHENIX AC Vacuum Interrupter Test Sets (40-60kV)

These AC Hipots are designed primarily for Vacuum Interrupter Testing in accordance with ANSI/IEEE C37.60 and IEC 62271 standards. They can also be used to test Circuit Breakers, Switchgear and other apparatus keeping in mind the current generated.

Models: PHENIX 640-0.4P, 660-10PA

    • Ruggedly constructed for years of field use

    • Units feature easy to read digital instrumentation, efficient controls, and lightweight resin cast transformers

    • Simple set-up and operation

    • ISO17025 calibration upon request

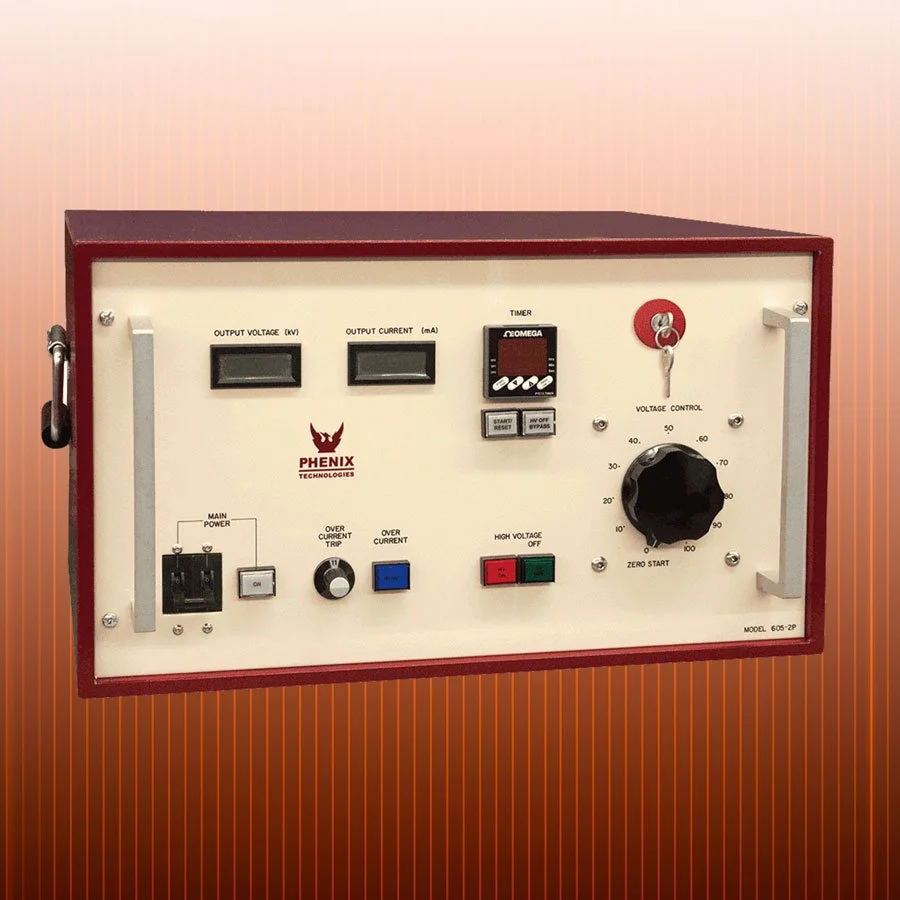

PHENIX Benchtop AC HiPots (5-15kV)

The Phenix line of 5 kV-15 kV AC Hipots offer a completely integrated, easy-to-use high voltage AC supply. The air-insulated, high-voltage transformer, controls and regulator are housed either in a painted steel benchtop enclosure or for the larger units in a free-standing steel enclosure with casters.

Models: PHENIX 605-2P, 605-5P, 605-10P, 610-2P, 610-5P

    • Suitable for AC dielectric and insulation testing up to 15 kV on all types of electrical products such as motors, cables, switchgear, bushings, capacitors, fuses, and arrestors

    • Complies with UL, CSA, OSHA, NEMA, IEC, AEIC, EPCEA, IEEE, ASTM and other applicable testing standards

    • 1-piece design

    • Housed in a rugged steel enclosure

    • Models available with easy to read digital meters or a full-color touch screen display with data acquisition

    • ISO17025 calibration upon request

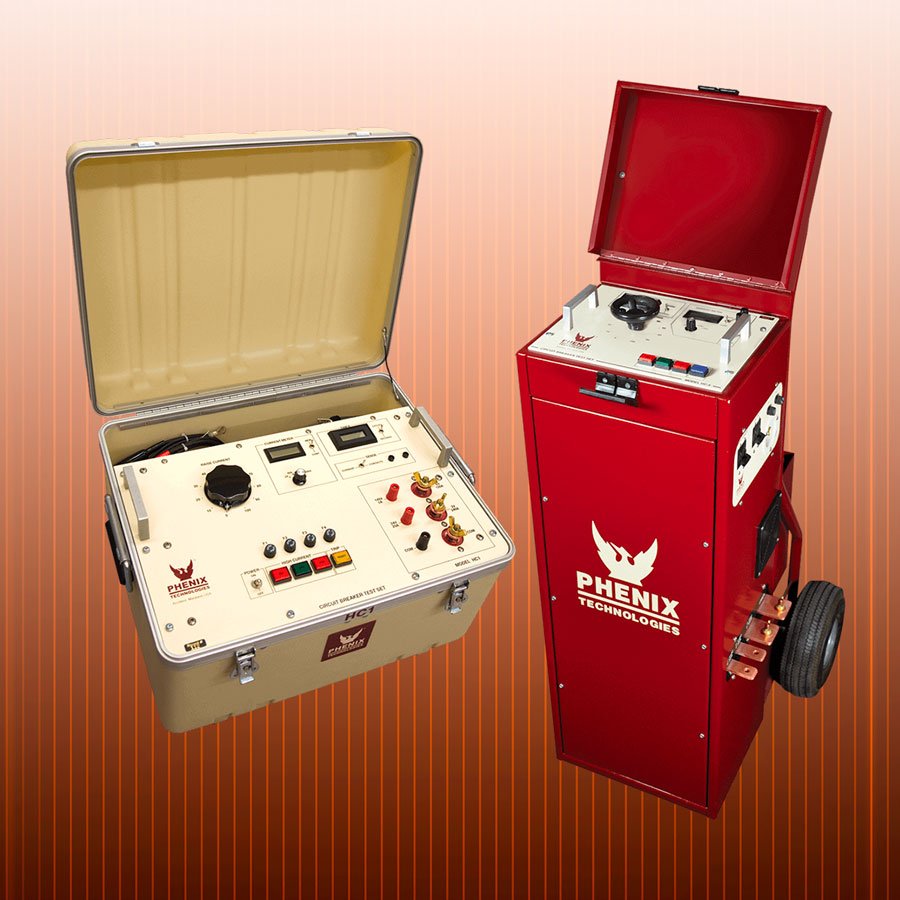

PHENIX HC Series
High Current Test Sets (1000-5000A)

The HC Series perform testing of circuit breakers and relays, current transformers, ground fault trip devices, or use in other applications that require a high current power source. All models can be easily transported for on-site testing and deliver the best value and many superior features.

Models: PHENIX HC1, HC2, HC3, HC5

    • Ideal for testing thermal, magnetic, and solid-state motor overload relays, as well as molded-case circuit breakers and ground fault trip devices

    • They can also be used in many other applications requiring a high current source

    • Easy to operate

    • Ruggedly constructed for years of field and shop use

    • Designed using proven technology, these units combine a variable high current output with user-friendly controls and precision instrumentation

    • ISO17025 calibration upon request

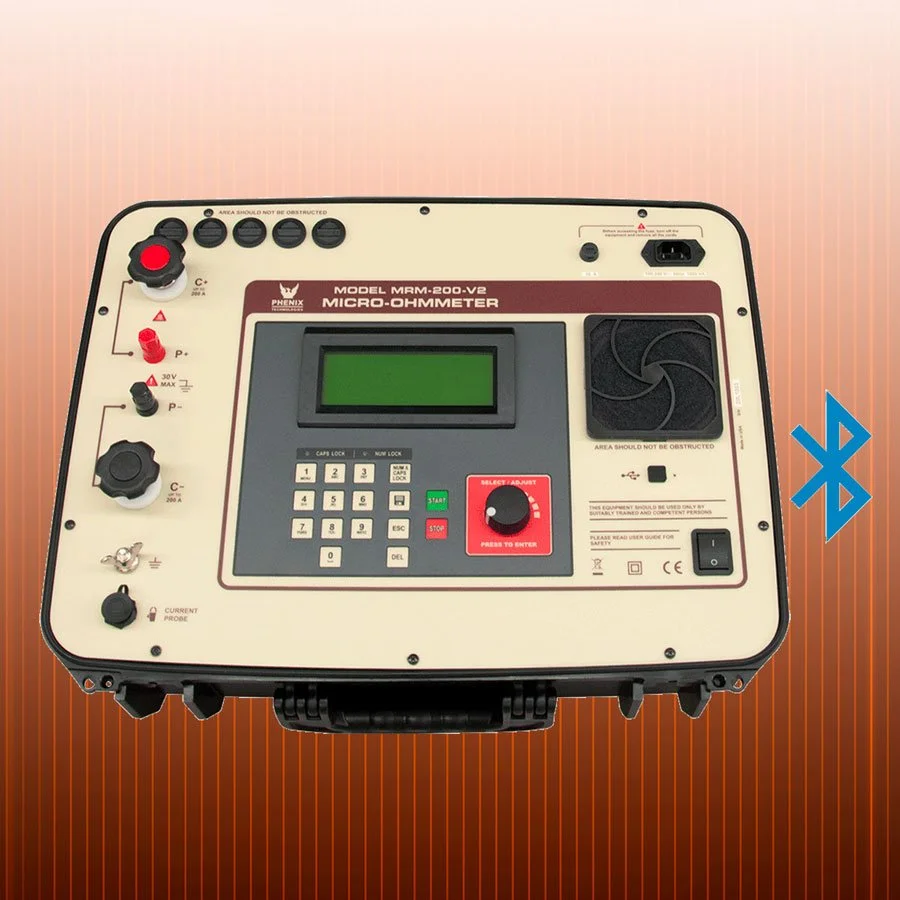

PHENIX MRM Series
Micro-ohmmeters

Accurately measure very low contact resistances of switches and circuit breaker contacts, transformer and motor windings, wire and cable samples, joints in busbars, or any application where low resistance current is required.

Models: PHENIX MRM-10-V2, MRM-10E-V2, MRM-100-V2, MRM-200-V2

    • Microprocessor controlled

    • 4-wire Kelvin measurement

    • Easy to read digital screen display

    • IEC safety compliant

    • ISO 17025 Calibrated (all models except MRM-10P)

    • Lightweight and ruggedly constructed

    • Reliable and accurate measurements in the laboratory or in the field

    • Bluetooth and USB communication interfaces

    • User-friendly software, report generator

PHENIX Digital Insulation Analyzers (1-10kV DC)

Multi-function testers

Models: PHENIX PM1A, PM5A3, PM10A3

    • Insulation Resistance test

    • Dielectric Absorption Ratio test

    • Polarization Index test

    • Capacitance test

    • Leakage Current test

    • Guarded Current Measurements

    • Step Voltage and Ramp test

    • Pass/Fail test

    • Low Resistance and Continuity Measurement

    • AC/DC Voltmeter up to 600V True RMS

    • Automated testing with microprocessor controller

    • Auto-range

    • External noise rejection

    • Rechargeable battery

    • IEC compliant

VANGUARD Single Phase TTR

Automatic 40 VAC single-phase transformer turns ratio tester with AC or battery power

Models: VANGUARD ATRT-01-S3, ATRT-03B-S3

    • Standalone or computer-controlled

    • Inexpensive

    • Displays turns-ratio from 0.8-15,000

    • Calculates turns-ratio percentage error

    • Displays winding polarity and phase angle

    • Displays excitation current

    • Battery or AC-Powered

VANGUARD Three Phase TTR

Automatic 250 VAC 3-Phase Transformer Turns Ratio Test with LTC control, AC or Battery Power

Models: VANGUARD TRF-250, TRF-250A

    • Battery-powered

    • Ratio range: 0.8 – 50,000 : 1

    • Capable of detecting 130 different 3-phase transformer types defined by ANSI, IEC, and Australian standards

    • 4 test voltages: 4Vac, 40Vac, and 100Vac, and 250 Vac

    • Phase angle and excitation current measurement

    • Bluetooth and USB PC interfaces

    • 4.5” wide thermal printer
