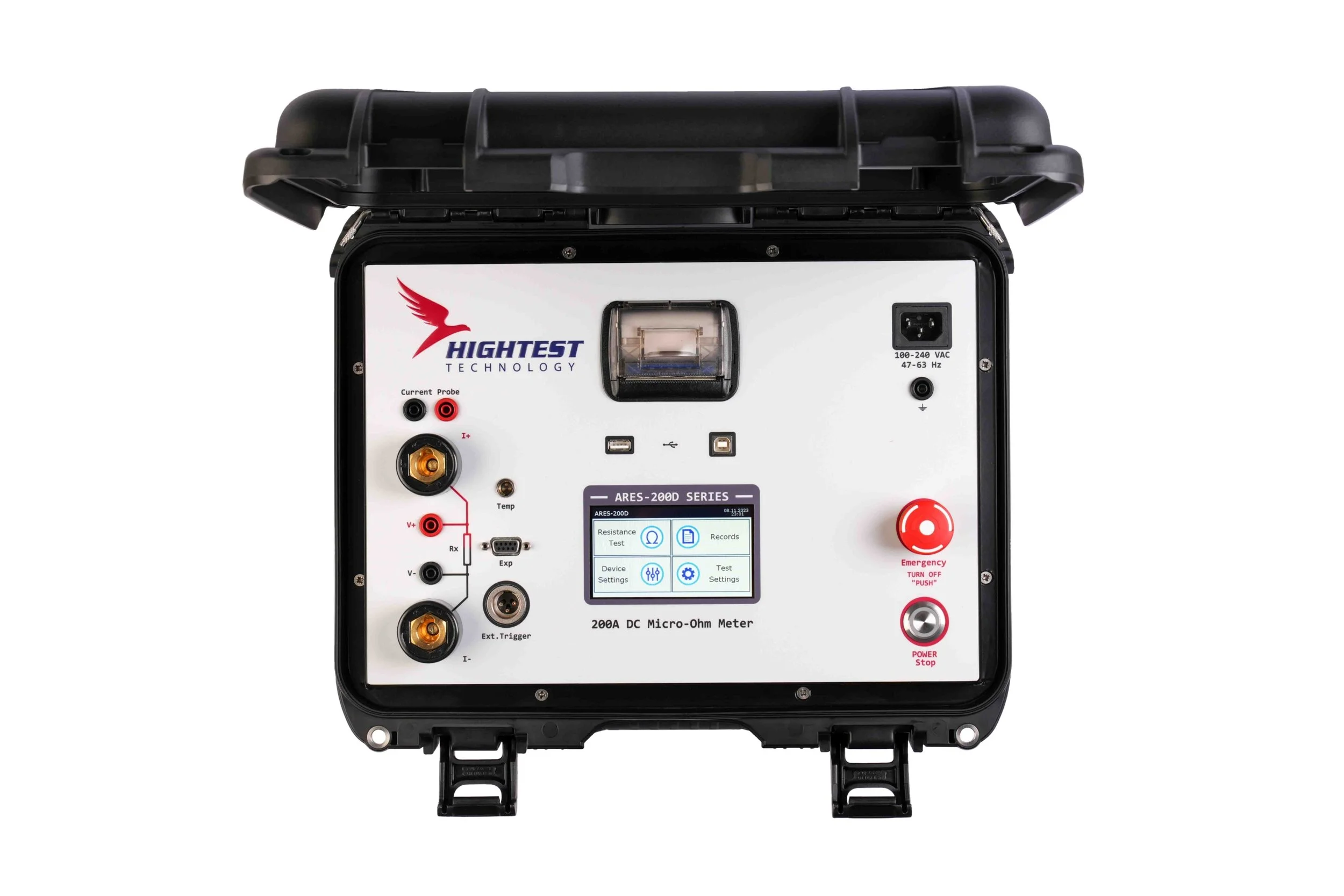

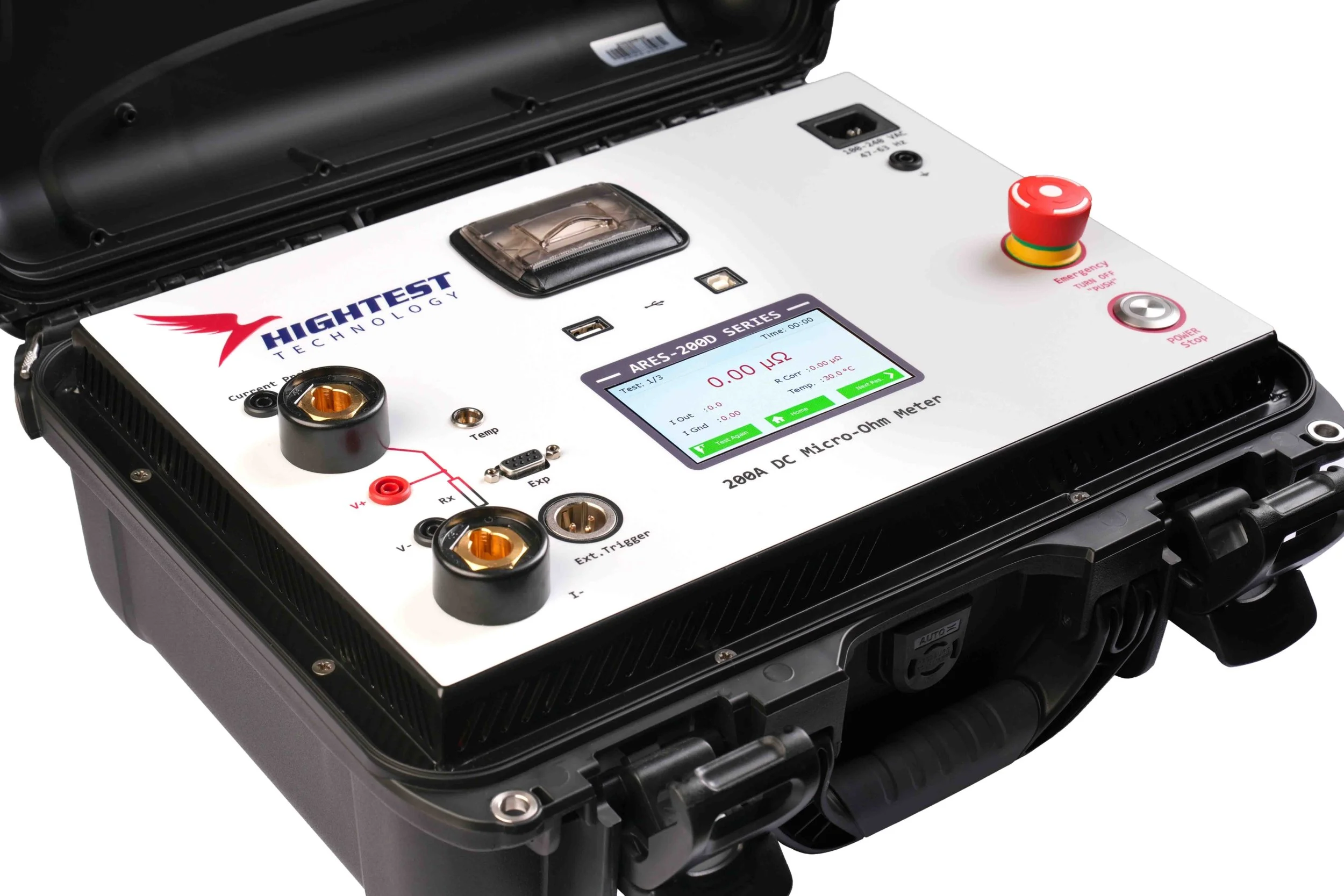

HIGHTEST ARES-200
200A DC Micro-Ohmmeter with Built-in Printer

ARES-200 is a micro-ohmmeter produced using advanced engineering technologies which can apply up to 200 A current. With its easy-to-use software, ARES-200 can easily measure contact resistances of a circuit breaker, shunt and disconnector by applying adjustable current from 1A to 200A.

It can calculate the real values of the resistors by providing penetration with the feature of the continuous current application. ARES-200 can measure from 0.1 µΩ to 5 Ω. ARES-200 is capable of measuring the static resistance of the contact points of the circuit breaker. ARES-200 can measure idle circuit breakers as well as dual-grounded circuit breakers. The optional current clamp will be able to measure the part of the current going through the ground line during the test and make the calculations considering this component.

KEY FEATURES

  • Contact Resistance Measurement

  • Adjustable Test Current: 1 A to 200 A

  • Measurement Range from 0.1 µ Ω to 5 Ω

  • Typical Accuracy 0.1%

  • Static Resistance Measurement

  • Dual Ground Test mode

  • Auto-test mode

  • Built-in Printer

  • Optional current clamp

  • Internal Memory, USB Flash Drive

  • PC control via USB cable

  • Optional Bluetooth control & communication

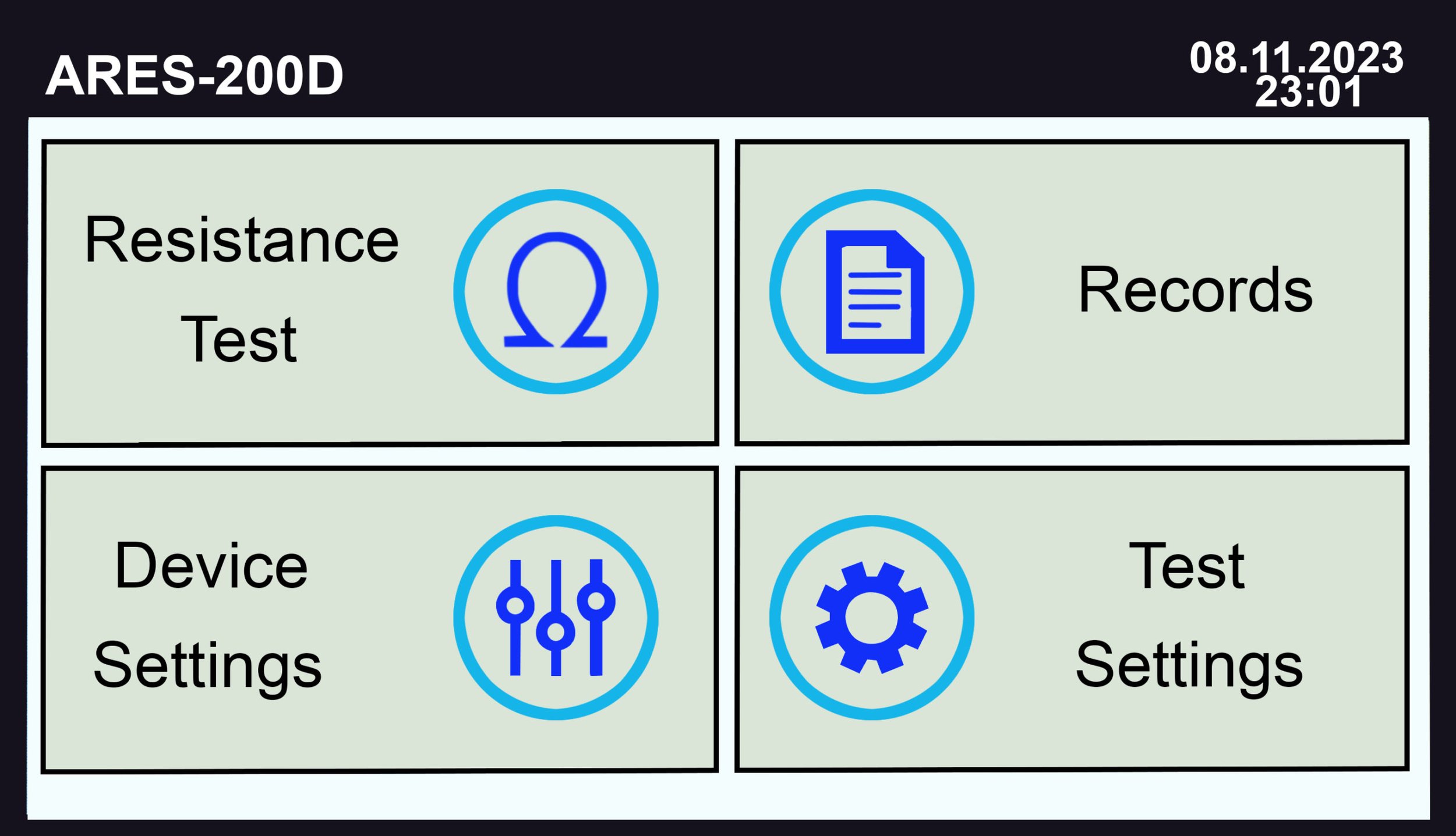

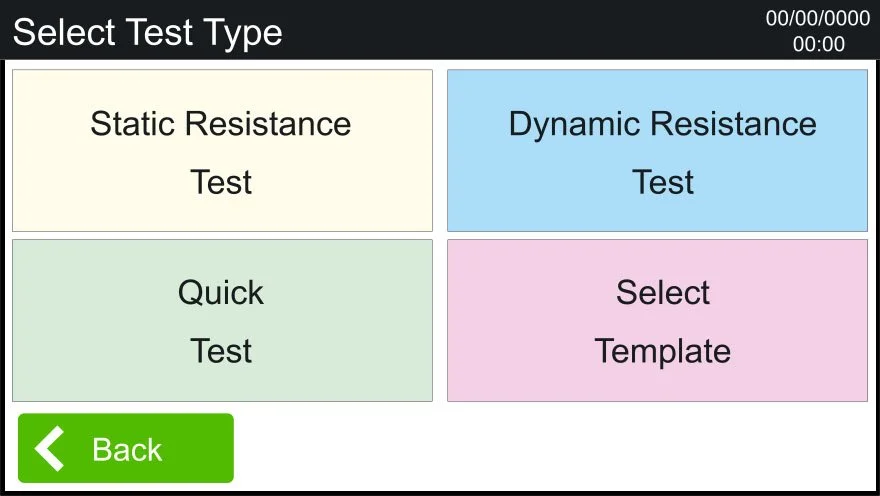

  • 4.3-inch TFT touch display

  • Weight: 20lbs

KIT INCLUDES

  • ARES-200, Power Cable, Ground Cable, 33 feet Standard Test Cable Set, USB Cable, Printer Paper (x2), USB flash drive, Instruction Manual (Soft Copy), DMP Software, Hard Carry Case, Cable Bag

OPTIONS

  • Custom Cable Lengths, Bluetooth (factory-installed option), Current Clamp
