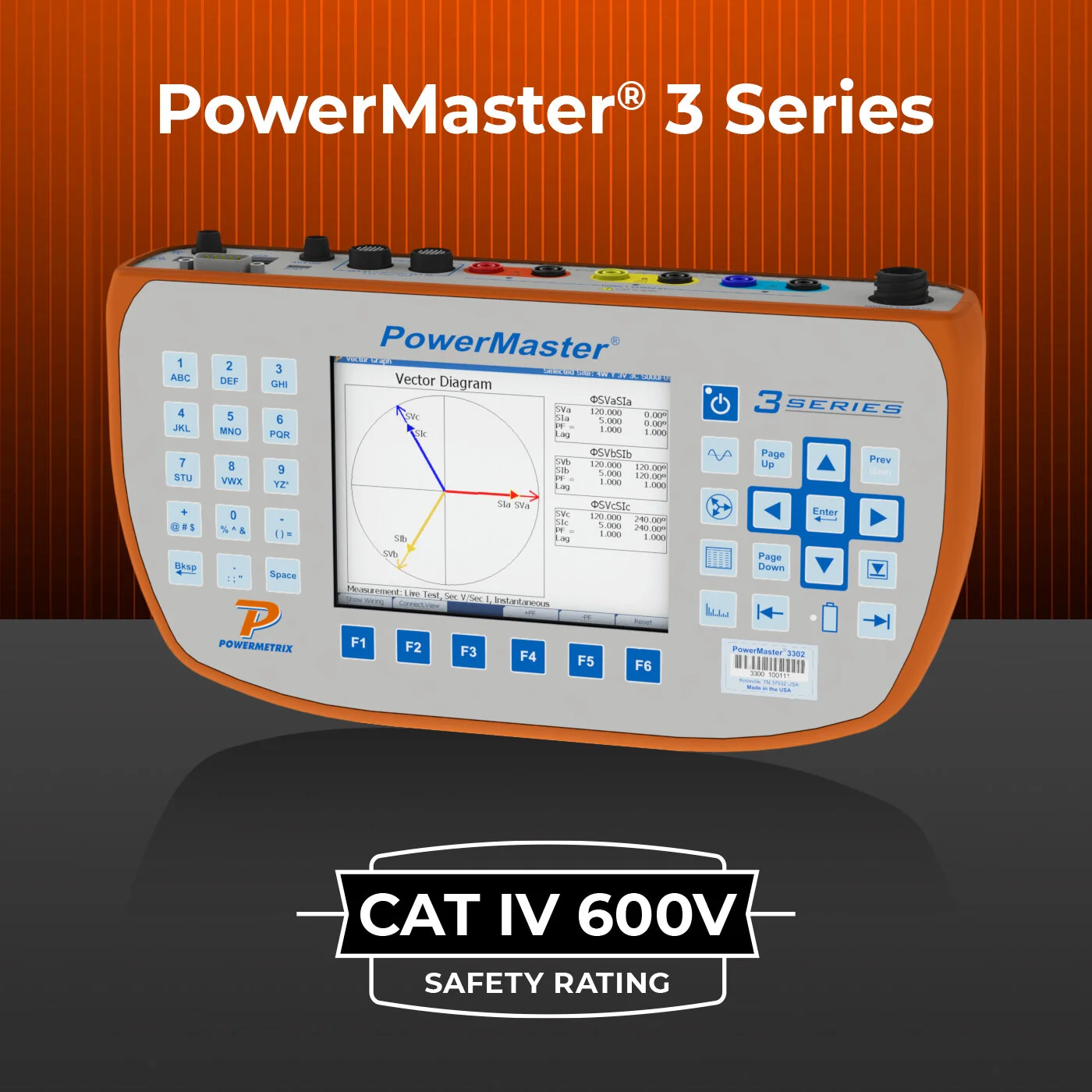

• 3 Phase Reference Standard ±0.05% Accuracy

• CAT IV 600V, ANSI, IEC 61010-1-2012, IP-40 Safety Standard

• Vectors, Waveforms, Harmonics (50th), RMS Data

• 3 Phase Direct Current Inputs (up to 20A)

• 3 Phase CT Ratio Testing

• 3 Phase CT Burden Measurement

• 3 Phase PT Ratio Testing

• 3 Phase PT Burden Measurement

• Customer Load Meter Testing

• Demand Meter Testing

• Optional wireless Bluetooth™ remote testing operation with Windows tablet or laptop

Direct Inputs:

AC Current:
3 Inputs: 0.1 to 20A, between 60 and 480VRMS
Phase:
+/-0.030 degrees 0.1 to 0.5A
+/-0.010 degrees 0.5A to 20A
Resolution: 0.000001 A

AC Voltage:
3 Inputs: Neutral Reference; 60 to 480 Vrms
Phase: ±0.003 Degrees
Resolution: 0.000001 V

AC Current Probe Channels:
Channels: 6 Inputs for probes.
Input Range: 30 mV to 3.2 VRMS
Accuracy: 0.1 % with ± 0.003 degrees + E probe
Probes Accepted:
Current: 1 mV/A to 300 mV/A
Voltage: 4.2mV/V

System Connectivity:
Meter pulse input 1 input: <12 V
Standard pulse input 1 input: max 1 MHz, <12 V
Calibration pulse output 1 input: 1 MHz max, 5 V TTL
USB ports for peripherals 2 type A (for keyboard, mouse, memory devices, etc.) 1 Mini-B Host
Ethernet port 1 (for high-speed connectivity)

Measurement:

Energy:
Whr, VARhr, VAhr
+/- 0.05 %Accuracy (direct)
+/- 0.10 % + E probe Accuracy (probes)

Power
W, VAR, VA
+/- 0.05 %Accuracy (direct)
+/- 0.10 % + E probe Accuracy (probes)

Power factor: -1.00 to 1.00

Harmonics: Up to 50th harmonic, user selectable (FFT)

Safety
Safety certification IEC 61010-1-2012
Measurement category CATIV 600V
Degree of protection IP-40
CE certification
CSA certification

Other
Display resolution: Full color transmissive VGA (640 x 480)
Display size: 5.7 inch
Humidity: 0% to 95% at 23°C, non-condensing
Dimensions (W x H x D): 13.0″ x 6.71″ x 3.02″
Weight: 3.5 lbs (not including cables and accessories)
2-Year Warranty

Power
Auxiliary power voltage input (charger)
100 to 240 V ac, 50/60 Hz
Internal battery Lithium Ion 2600mAHr battery pack
Battery life (100% charge) 3-4 Hrs (Charge time from 10% state approx. 2-3 Hrs)

• PRM® Powermetrix Remote Manager

• Bluetooth™ Connectivity

• Direct Voltage Cable with Alligator Clips

• Direct Current Cable with Duckbill Probes

• 9ft Probe Adaptor Cable

• Magnetic IR Pulse Detector

• IR Pulse Detector with Flex Arm

• Battery Charger

• USB Cable

• Pelican™ Carry Case
