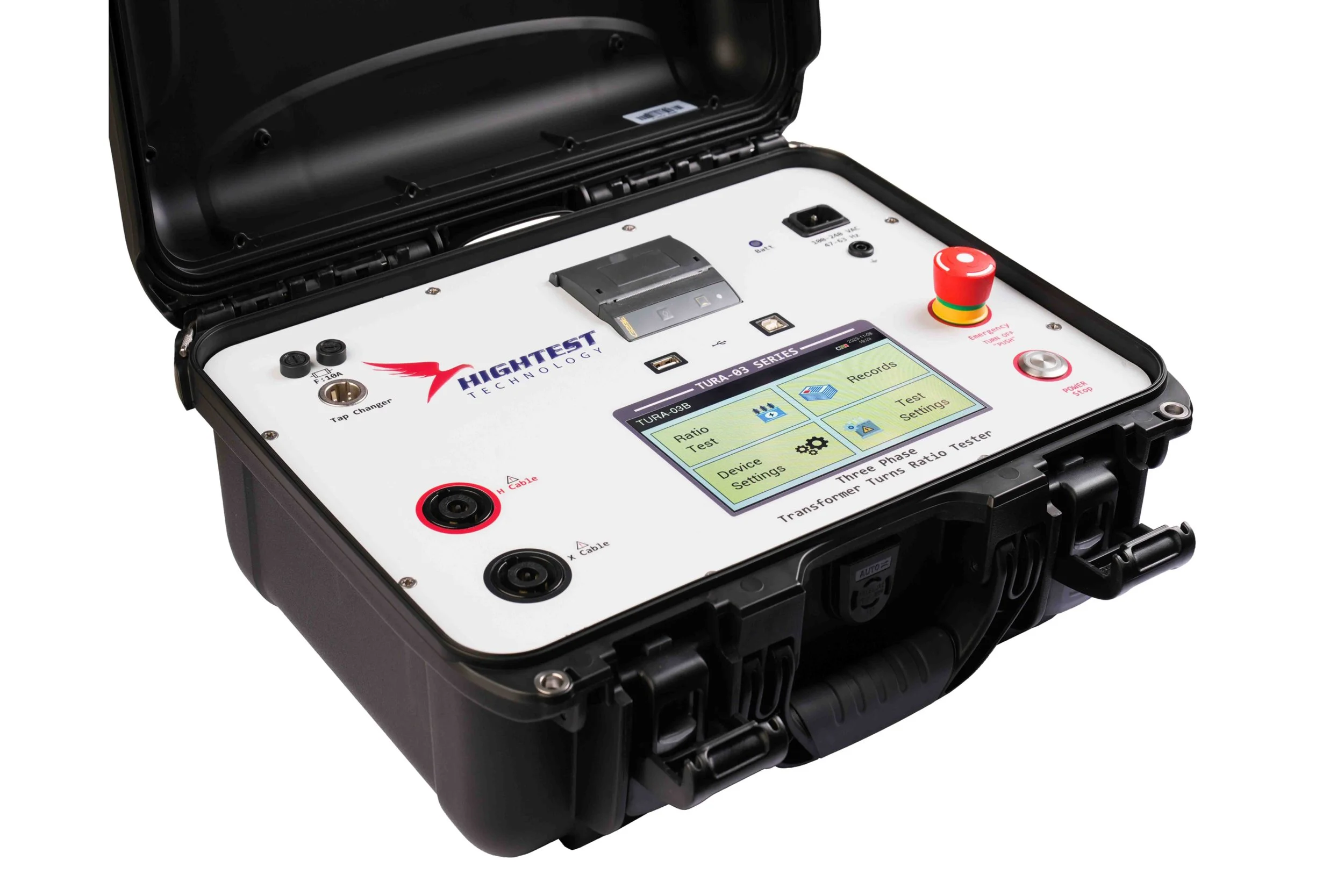

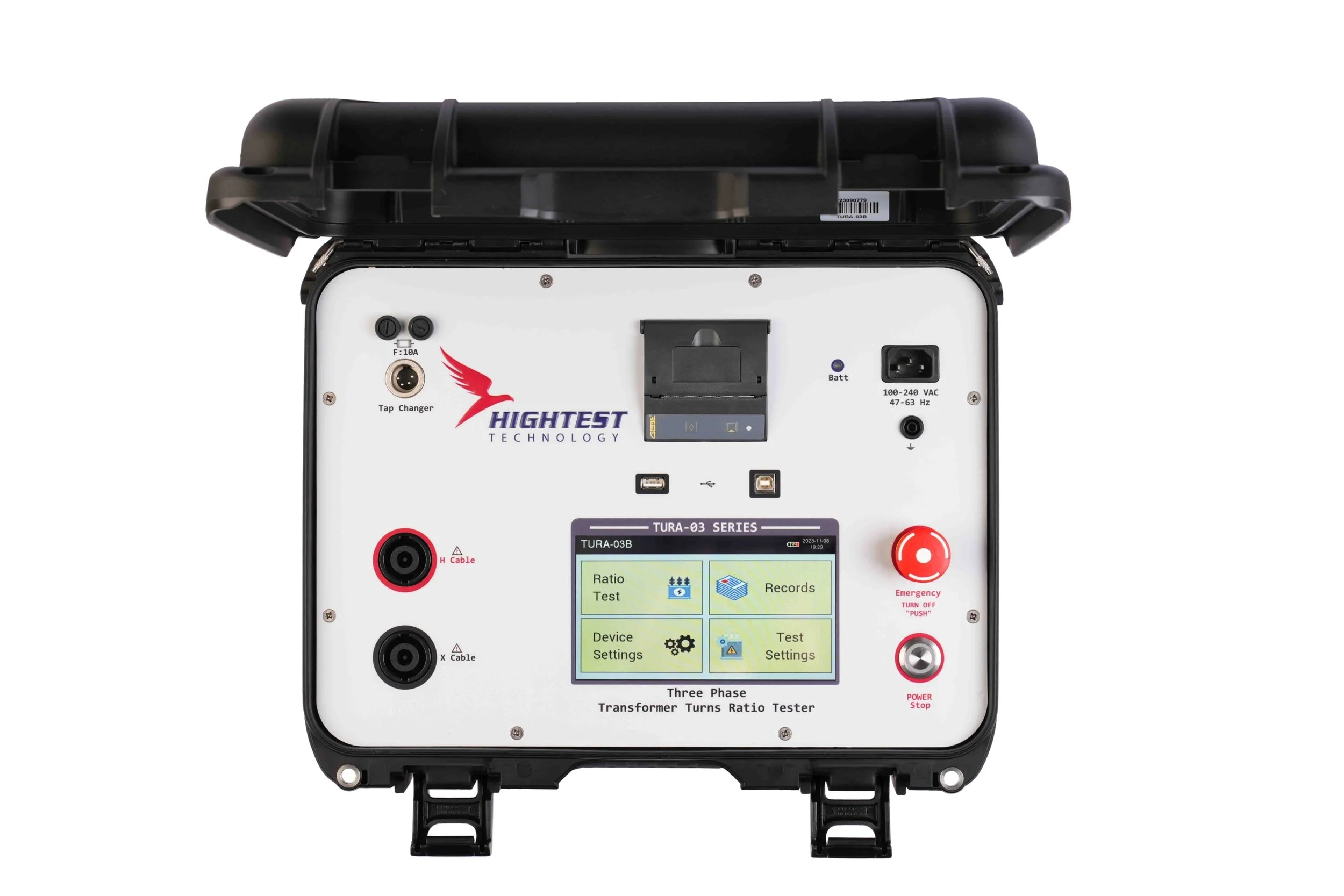

HIGHTEST TURA-03
250V Three-Phase Transformer Turns Ratio Tester

TURA-03 series turn ratio meters can test turns ratio by making only a one-time connection to transformers and automatically test all phases. TURA-03 is designed to accurately measure the turns ratio of single-phase and three-phase transformers. TURA-03 performs fast and accurate turns ratio measurements on current, potential and power transformers via its user-friendly interface. With market-leading accuracy, the TURA-03 has a very wide ratio measurement capability with a precision of 0.08%.

KEY FEATURES

  • Single-phase and three-phase turns ratio measurement

  • Ranges from 0.8 to 50,000 Ratio Measurement

  • High Accuracy (0.08%)

  • 1V, 4V, 10V, 40V, 100V and 250V AC Test Voltages

  • Ratio Error Measurement, Excitation Current, Phase Angle,
    Polarity Measurement, Magnetic Balance

  • Built-in Battery & Printer

  • Internal memory, USB Flash Drive

  • PC control via USB cable

  • Optional Bluetooth control and communication

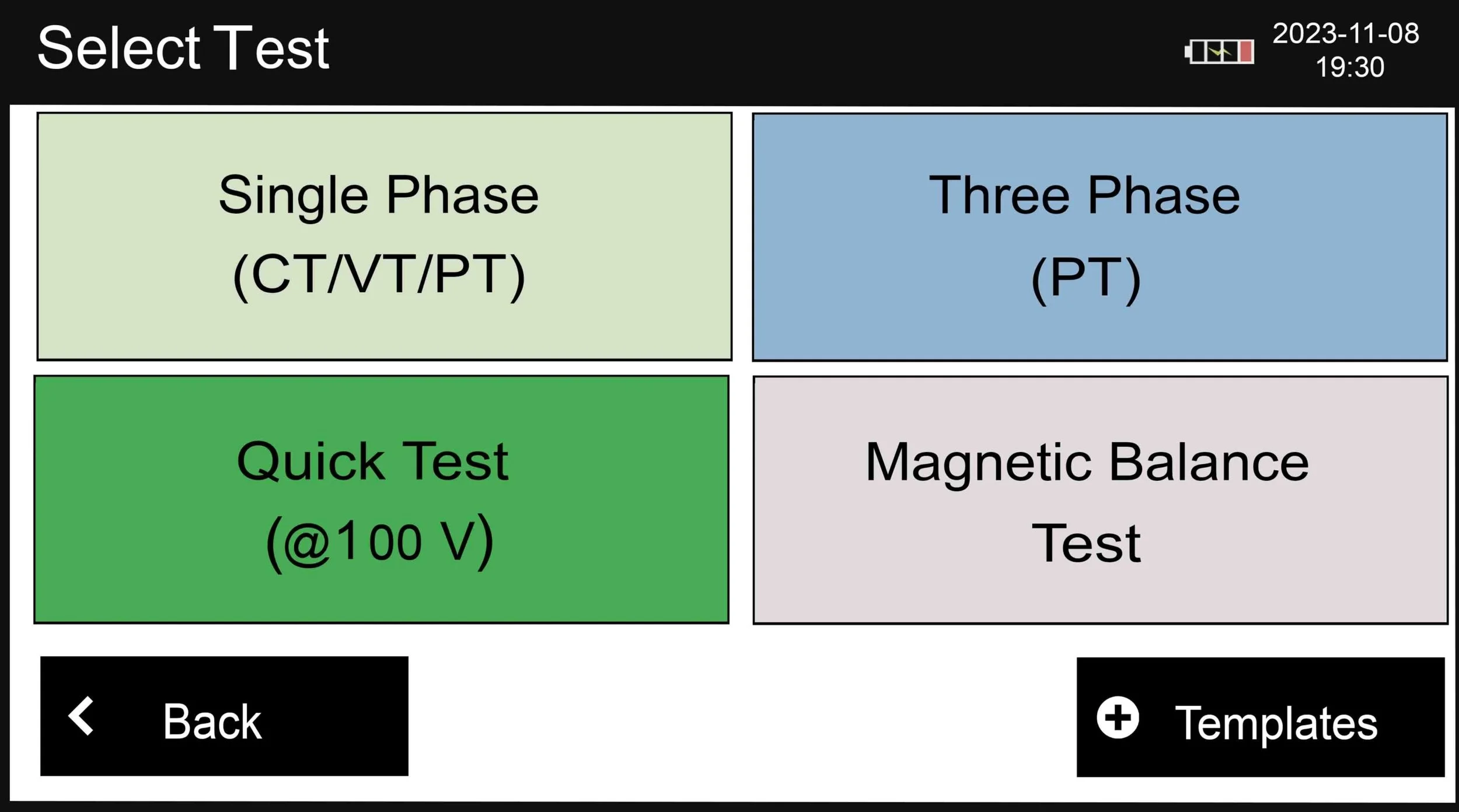

  • 7-inch colour touch display

KIT INCLUDES

  • Power Cable, Ground Cable, 5 m Test Cable Set, USB Cable, Printer Paper (x2), USB Flash Drive, Instruction Manual (Soft Copy), DMP Software, Hard Carry Case, Cable Bag

OPTIONS

  • Bluetooth (TURA-03 BLUE)
