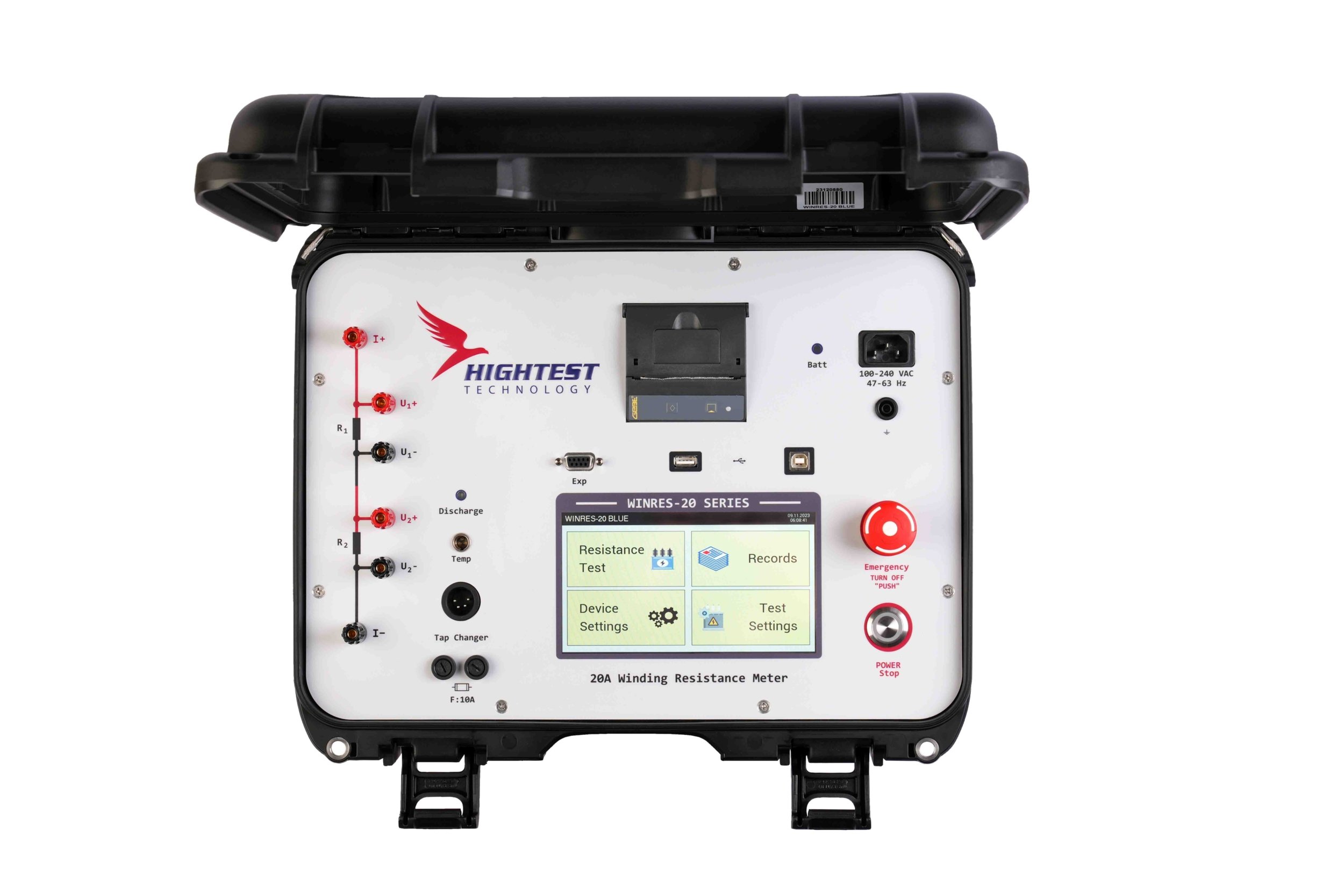

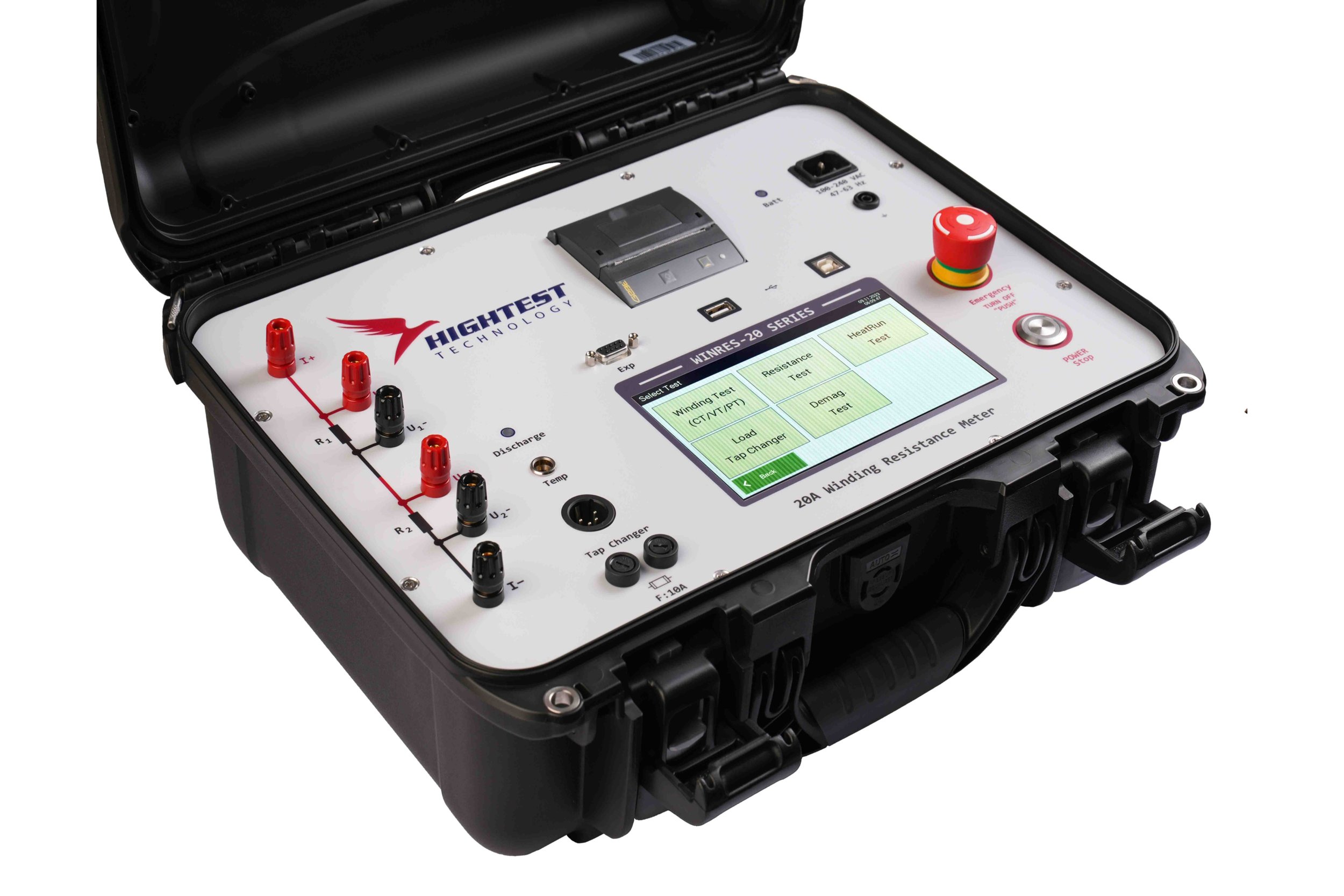

HIGHTEST WINRES-20
20A Transformer Winding Resistance Tester with Built-in Printer
WINRES-20 is designed to measure the winding resistance of transformers and can measure current, voltage, power transformer windings and shunt resistors. Applying up to 20A Direct Current allows WINRES-20 to measure the resistance of the transformers quickly and accurately.
KEY FEATURES
2-channel resistance measurement
Measurements from 0.1 μΩ to 100,000 Ω
0.001A to 20A DC adjustable current output
High accuracy (0.1%)
Demagnetisation feature
On-Load Tap Changer Test

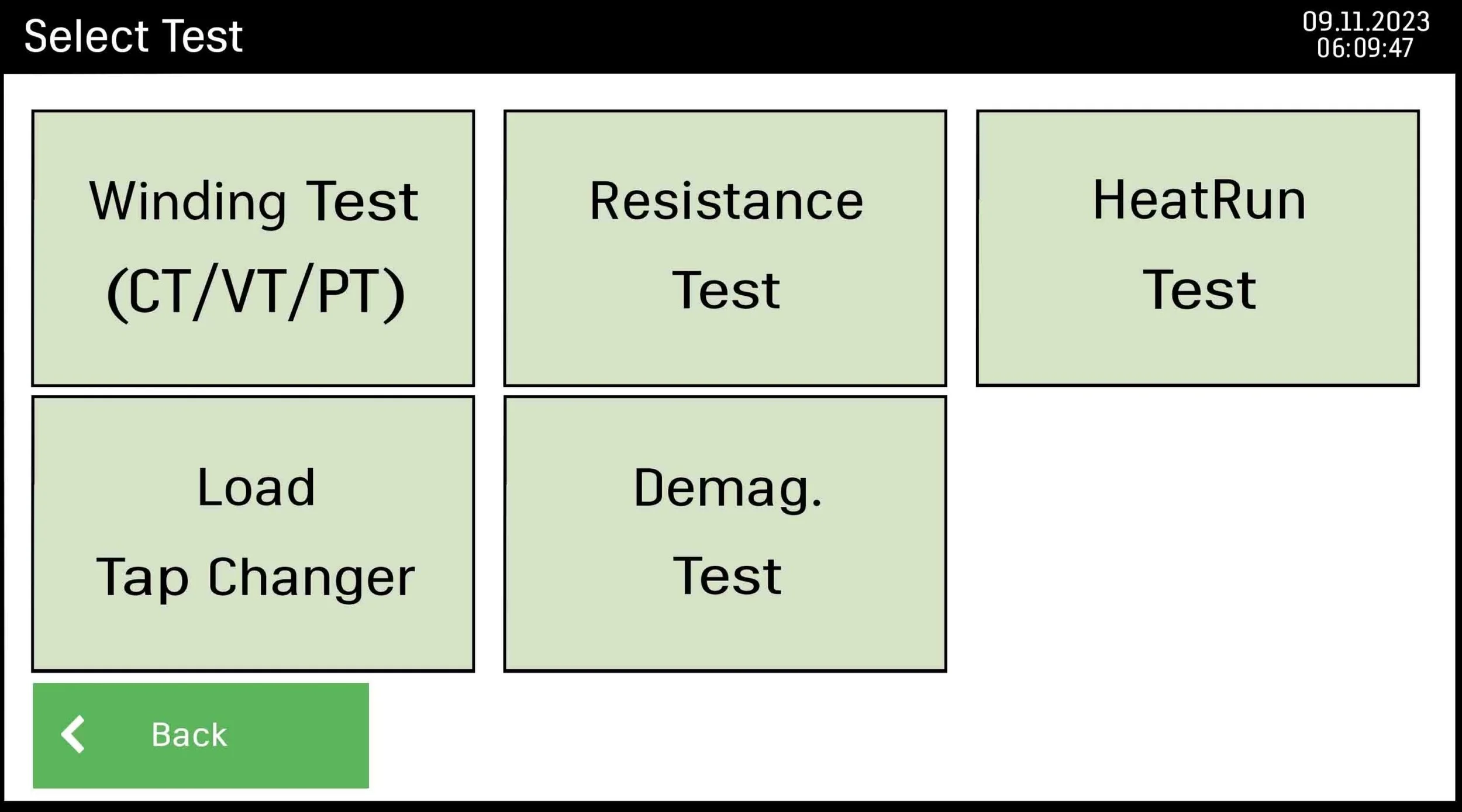

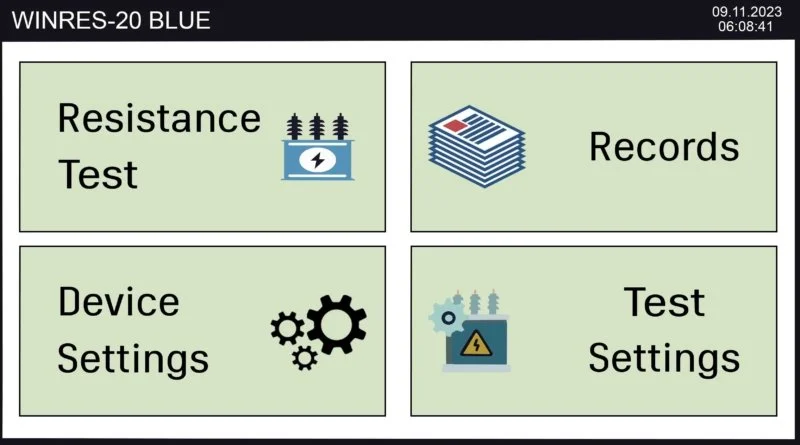

User-friendly operation menu
Temperature correction (1 input, sensor optional)
Built-in printer (2.28-inch)
Data Management Platform (DMP Software)
Internal memory, USB Flash Drive
PC control via USB cable
Built-in Bluetooth control and communication
7-inch TFT Colour Touch Display
Emergency stop
Multi-language
Weight: 14 lbs.
KIT INCLUDES
WINRES-20B BLUE, Power Cable, Ground Cable , (1x) 5m Current Cable Set, (2x) 5m Voltage Cable Set, USB Cable, Tap Changer Cable Set, Jumper Cable, Printer Paper (x2), USB flash drive, Instruction Manual (Soft Copy), DMP Software, Cable Bag
OPTIONS
Hard carrying case
Three-Phase Adapter TPA-03
Temperature Sensor
10m Long Cable Set
Built-in Battery (WINRES-20B)
Built-in Battery and Bluetooth (WINRES-20B BLUE)
